Guidance Signs

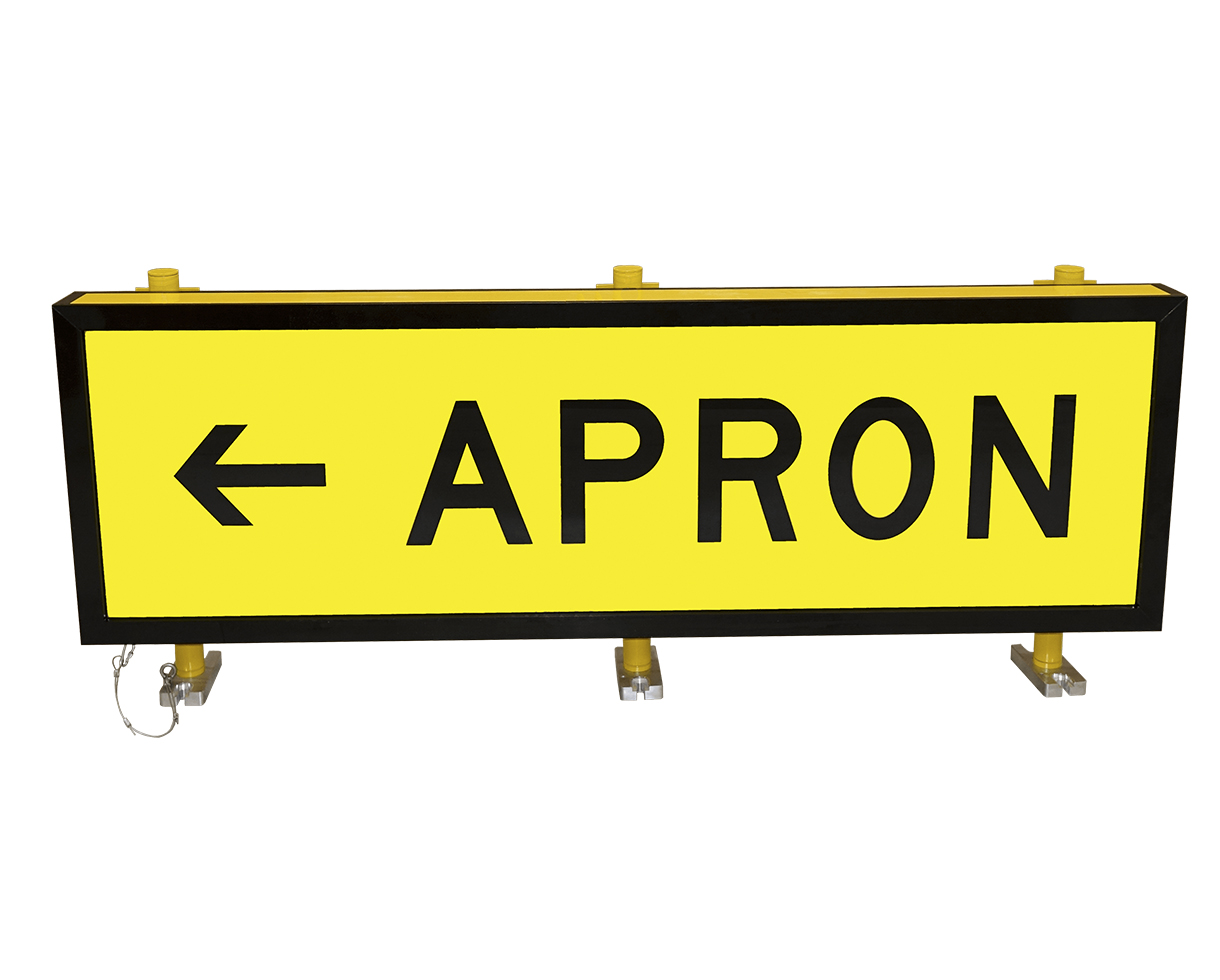

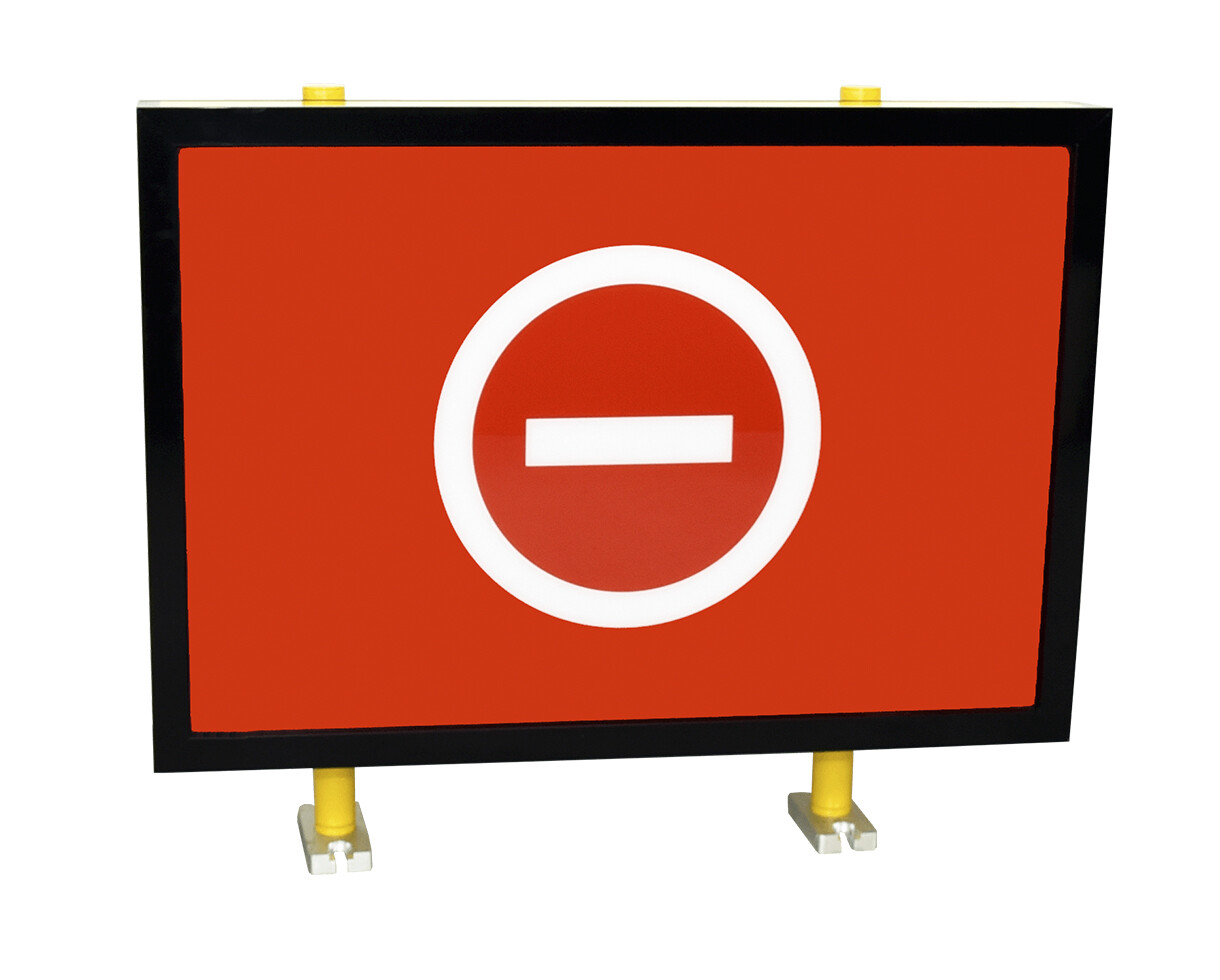

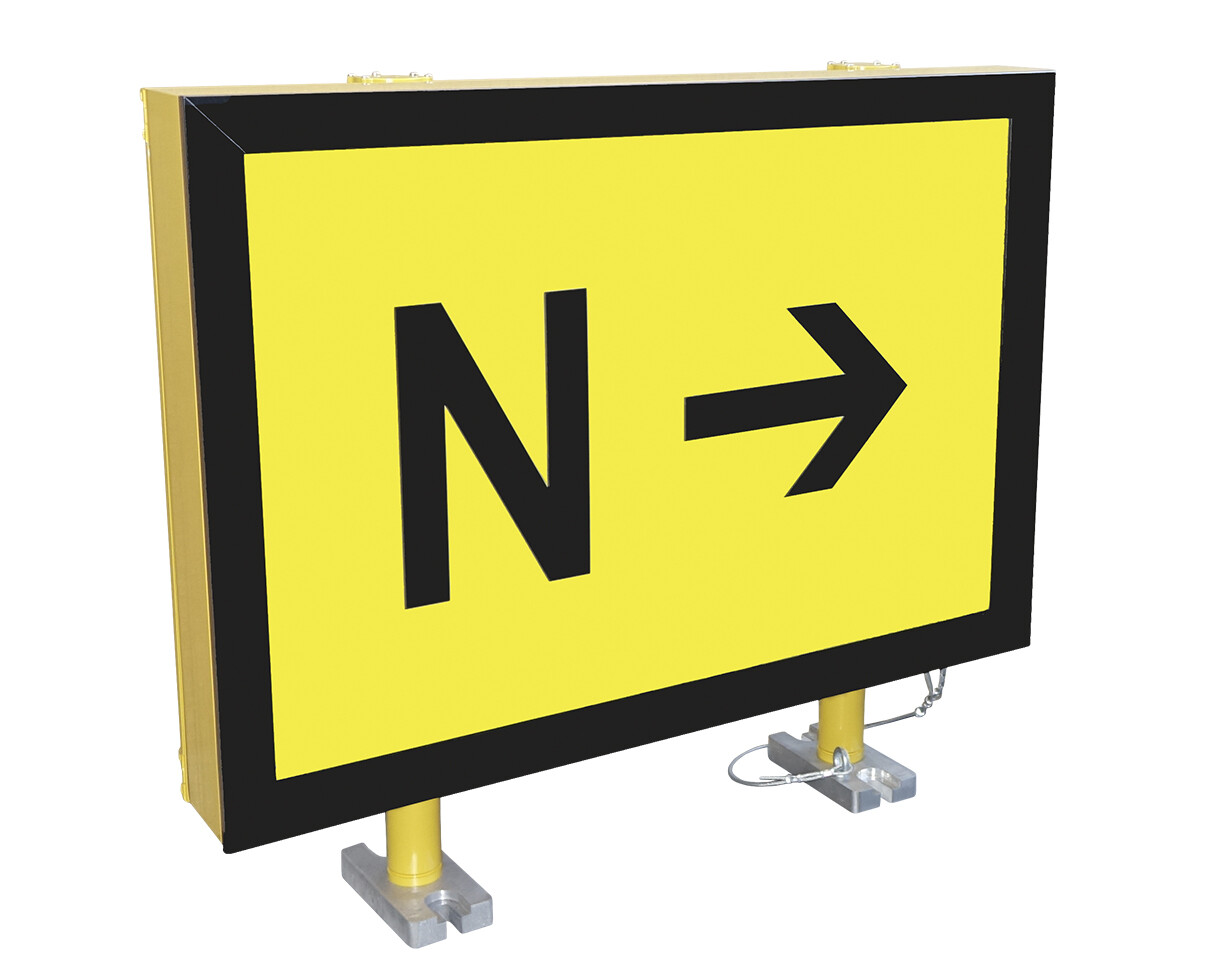

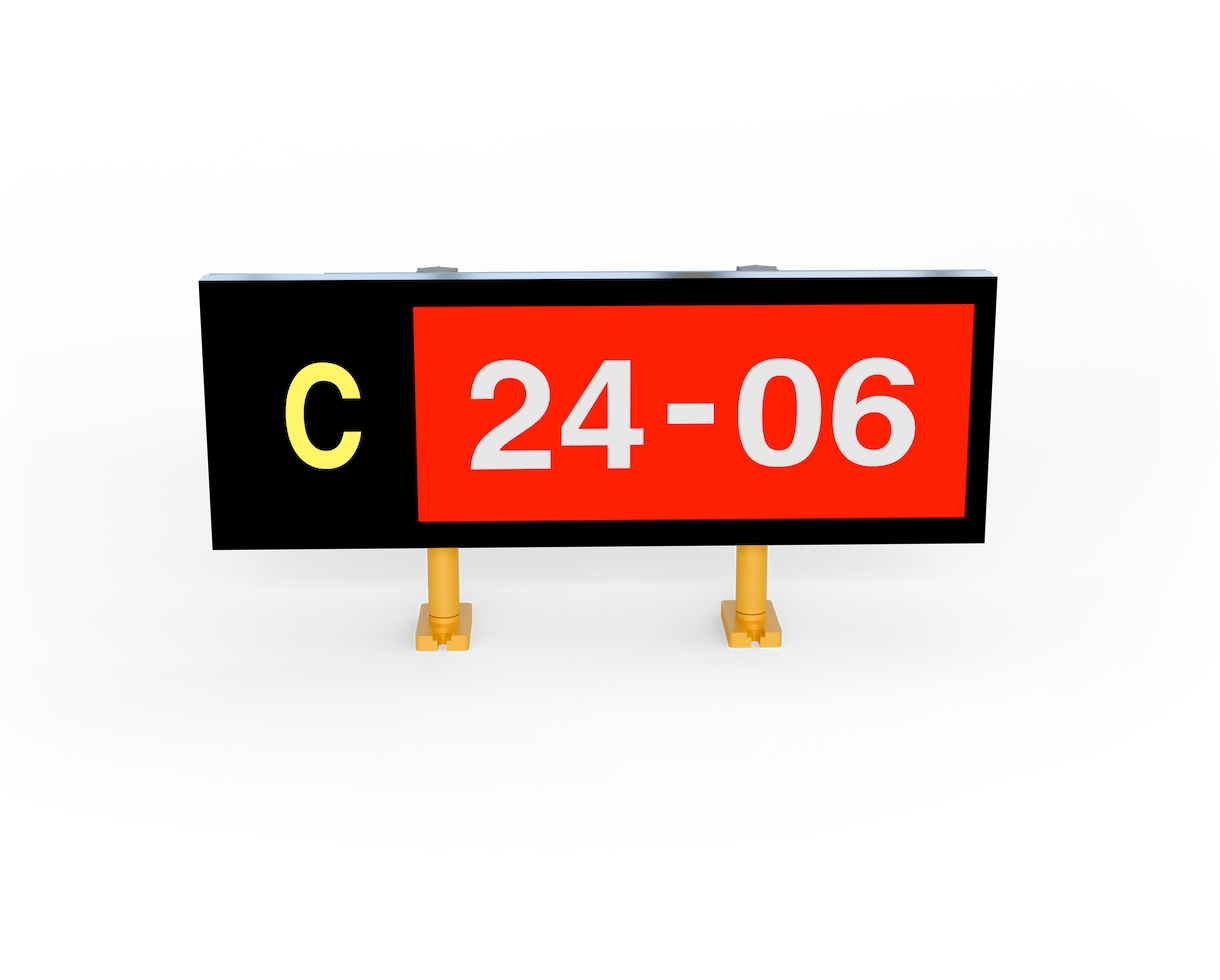

Guidance signs illuminated for Taxiway and runway have been designed to be used for Mandatory Signs, Information Signs, and Location Signs.

Guidance signs are Certified/compliant According to Standards:

  • ICAO: Annex 14, Volume I – Aerodrome Design and Operations
  • FAA: AC 150/5345-44 – Specifications for runway and taxiway signs
  • NATO: STANAG 3316 – Airfield lighting
  • EASA: CS-ADR-DSN – Aerodromes design
  • AENA: PPT DIA/NOR/PPT/022
  • IAAE Canada: Aerodrome Standards and Recommended Practices – TP312
Category ,
Product Code AL 070-XXX-XX
Add to my list

Description

Guidance signs are made of quality materials for a long lifetime

  • Housing – powder-coated aluminum profile double-walled, RAL 1004 (aviation yellow)
  • Front panel – 4mm thick poly-carbonate UV and abrasion-resistant (optional 5 or 6 mm thick polycarbonate can be used)
  • Cable gland – nickel-plated brass

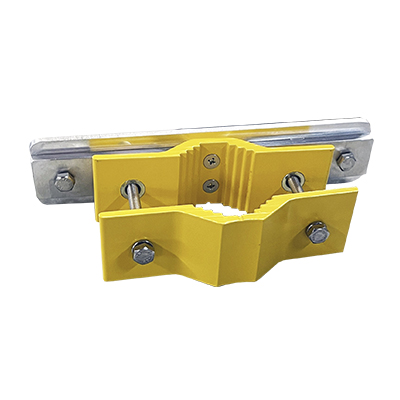

  • Fastening system – powder-coated aluminum, RAL 1004 (aviation yellow)

Electrical Characteristics

  • Power consumption: 12W per meter
  • Power supply:
    • Type M – 110/230V AC from mains
    • Type S – 2.8 up to 6.6A series circuit
    • Solar power pack optional

Downloads

Datasheet PDF 271 KB Download PDF
