Precision Approach Path Indicator – APAPI

Precision Approach Path Indicator – APAPI

  • Designed and built with simplicity and ease of maintenance in mind
  • LED technology
  • Lightweight, low-energy and environment-friendly lighting fitting
  • Extensive use of aluminum alloys reduces fitting weight and eases handling in the field

Certified According to Standards:

  • International Civil Aviation Organization, Aerodromes, Annex 14, Volume 1, Seventh Edition, dated July 2016
  • Photometric – (ICAO) Figure A2-23 Light intensity distribution of PAPI and APAPI
  • Chromaticity – Section 5.3.5.30
Category , , ,
Product Code AL 088-30-WH-RE
Add to my list

Application

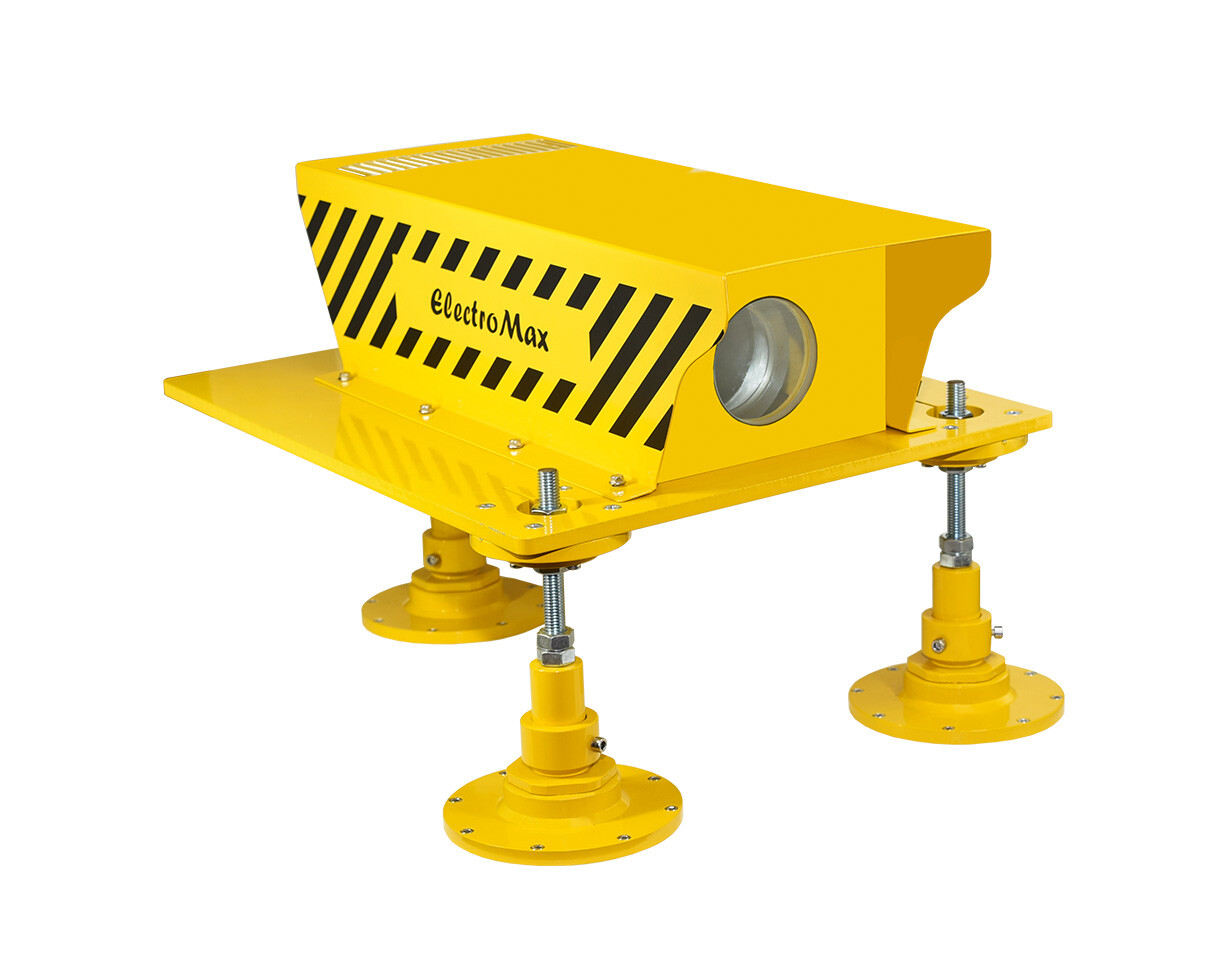

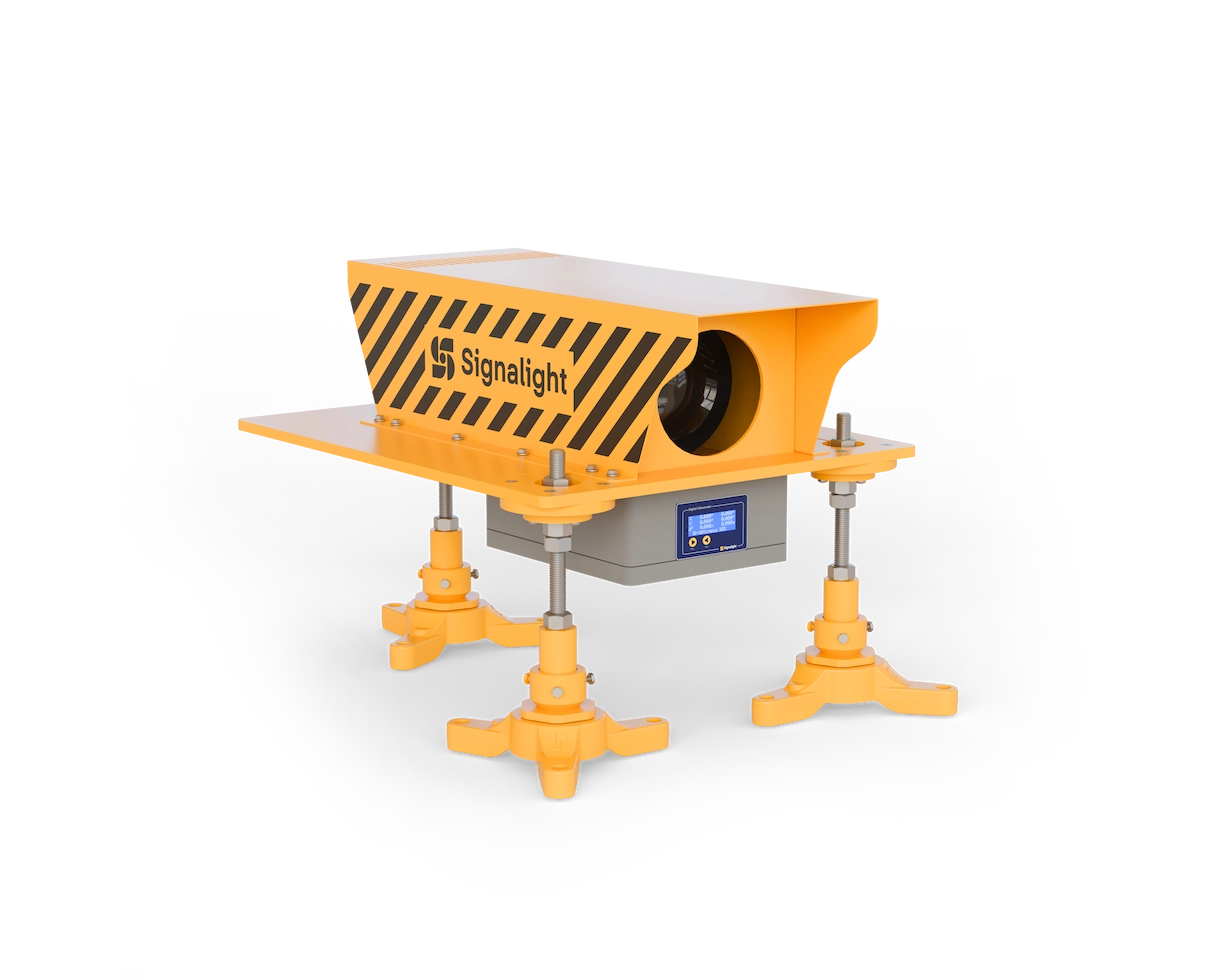

Precision Approach Path Indicator – APAPI

This unit is part of the visual approach slope indicator system.

The system is made of two units and the purpose is to give color cues to the pilots to maintain the correct approach slope to the FATO.

Description

  • Housing powder-coated aluminium, RAL 1004 (aviation yellow)
  • Anti glare visor powder-coated aluminium, RAL 9005 (gloss black)
  • Diffuser hardened front glass for sandblast protection
  • Cable gland nickel-plated brass
  • Fastening system powder-coated aluminium, RAL 1004 (aviation yellow)

Electrical Characteristics

  • Power consumption max. 50W
  • Power supply 110/230V AC from mains

Connecting to a 110/230V AC supply:

  • The 110/230V AC LED APAPI is supplied with a 3-core ( 3 x 1.0 mm2 ) 1m flying lead
  • The overall diameter of the cable is nominally 7.5 mm
  • Connect the free ends of the cable to the proper voltage source

Accessories

Downloads

Datasheet PDF 227 KB Download PDF
