Heliport Inset Lights

Heliport inset lights are LED underground lights mounted on shallow bases or base canes in helipad platforms for signaling the heliport FATO, TLOF, AIMING, ALIGNMENT, or TAXI. These Heliport Lighting products are installed in specially designed underground bases.

Innovative base design for easy installation

• We designed a smaller base easier and cheaper to install in the helipad platform because it needs less drilling and less resin to be fixed in the concrete.
• The deep is also lower than standard shallow bases, just 130 mm or even 100 mm. This is very useful when the platform is not that thick.
• In the shallow bases, you can easily make the electrical junction connection in the IP68 boxes we offer.

Power and control options

• Usually, the lights are powered from the controller in low voltage and can be also dimmed in three steps: 10, 30, and 100%.
• Optional the inset lights can be powered in 230 VAC having a fixed brightness.

Testing and reliability

• All INSET lights are tested according to ICAO standards for photometric distribution and color and also for the environment test.
• The lights were tested for low and high temperature, for the degree of protection IPX8, for life expectancy, static pressure, Shear load, Vibration, Surface temperature, Corrosion, etc.
• The INSET lights passed all these tests proving that are reliable and can be used in any environment, in low or high temperature, dry or humid atmosphere.

Types of inset lighting available

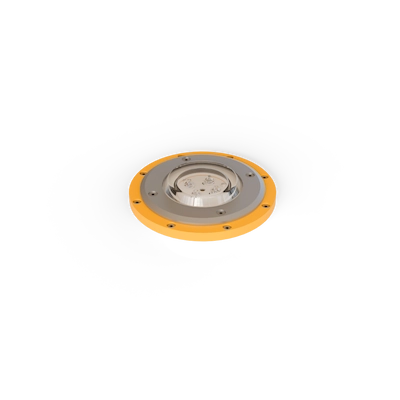

• INSET FATO HELIPORT LIGHT (Final Approach and Take-Off area): Inset lights that mark the limits of the declared safe area for the final phase of the approach maneuver or the start of takeoff.

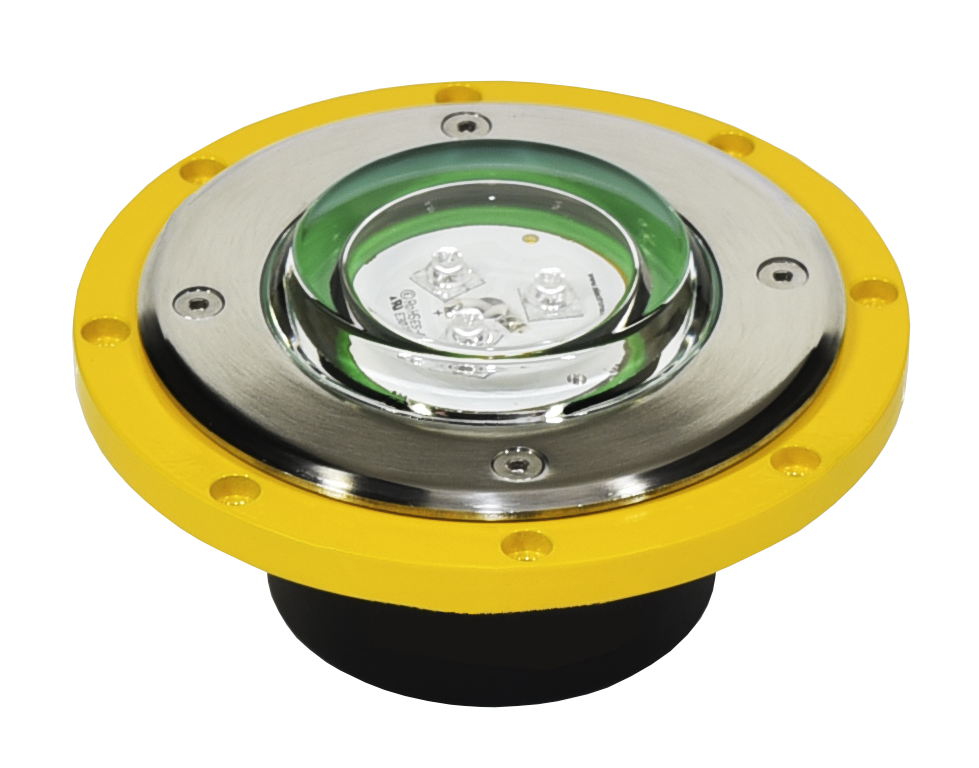

• INSET TLOF HELIPORT LIGHT (Touchdown and Lift-Off area): Lights embedded in the surface to identify the specific area where the helicopter completes its touchdown or initiates lift-off.

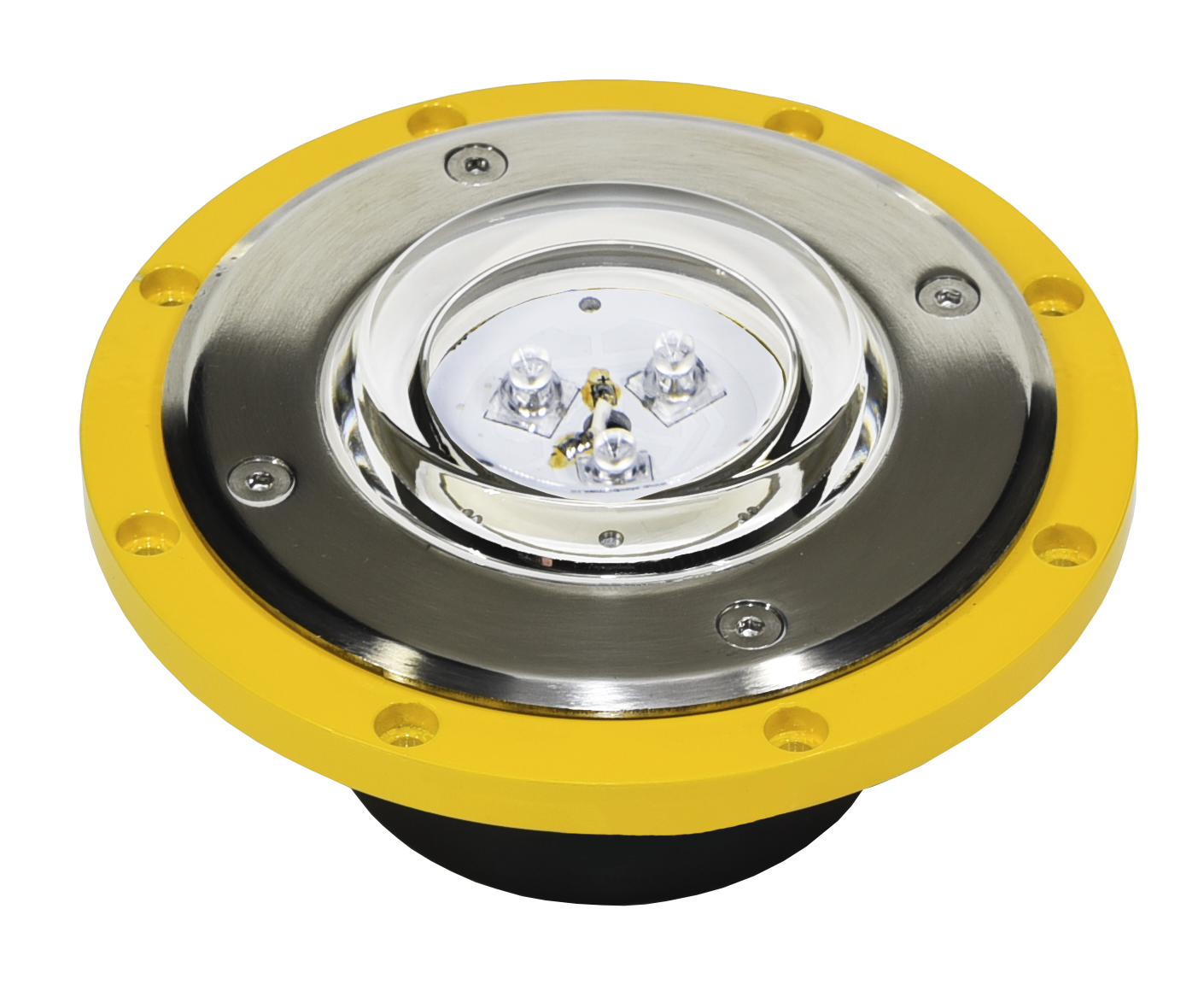

• INSET ALIGNMENT HELIPORT LIGHT: A series of inset lights providing visual track guidance for approach and departure paths.

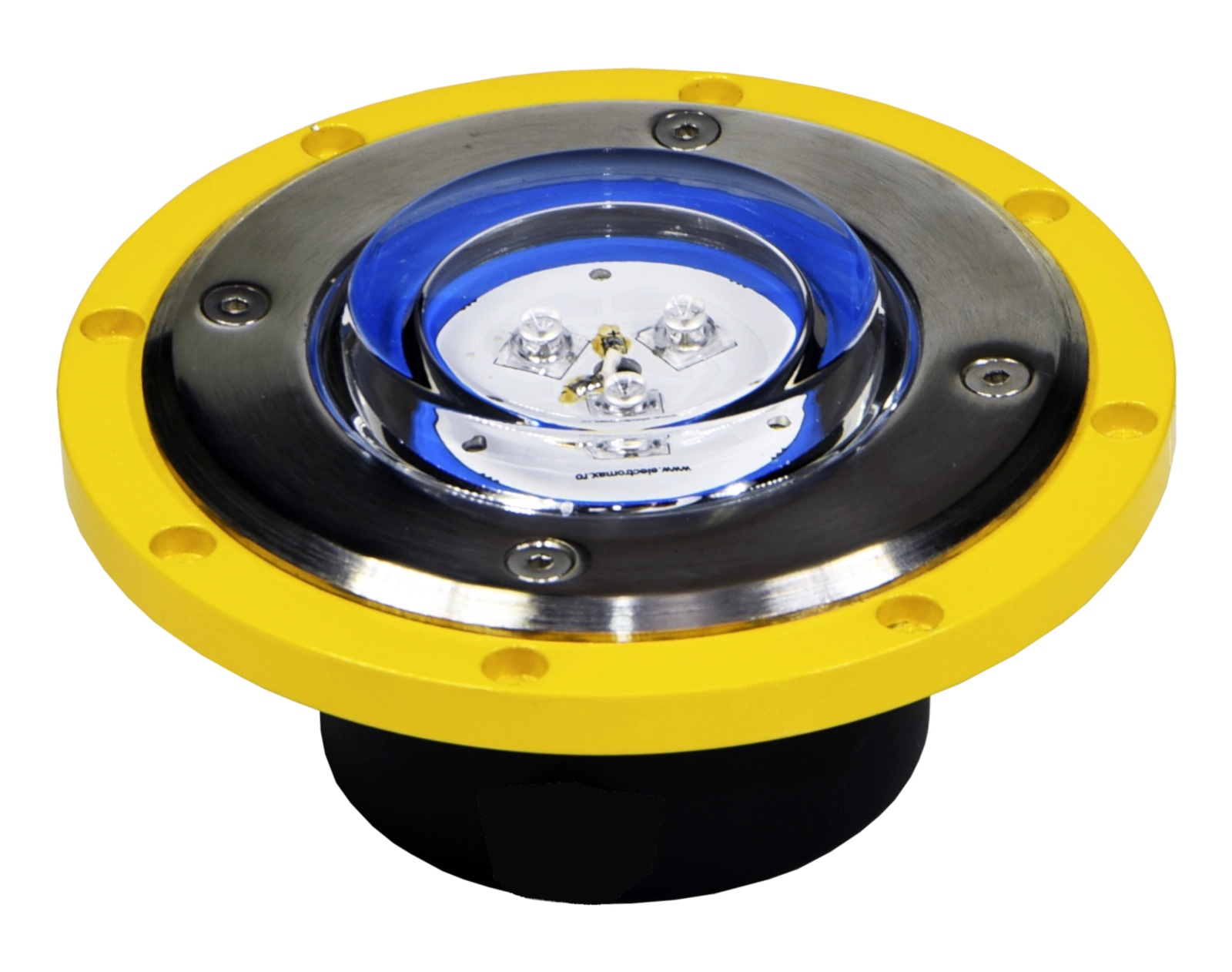

• INSET TAXIWAY HELIPORT LIGHT: Flush-mounted blue lights used to delineate the edges of taxi routes for safe ground movement.

Frequently Asked Questions

What makes Signalight inset bases different from standard shallow bases?

Our bases are specifically designed to be smaller and shallower (100 mm to 130 mm), requiring less drilling and resin. This makes them more cost-effective and ideal for thinner helipad platforms where standard bases cannot be used.

Can the brightness of the inset heliport lights be adjusted?

Yes, when powered by our low-voltage controllers, the lights can be dimmed in three distinct steps: 10%, 30%, and 100%. We also offer a 230 VAC version with fixed brightness.

How do the heliport inset lights handle harsh environmental conditions?

All our inset lights carry an IPX8 protection rating and have passed rigorous tests for static pressure, shear loads, vibration, and extreme temperatures, ensuring long-term reliability in both humid and dry climates.

Are Signalight heliport inset lights compliant with international aviation regulations?

Yes, every inset light is tested according to ICAO standards for photometric distribution and color, ensuring full compliance for civilian and military heliport operations.

What is the typical maintenance interval and life expectancy for these LED inset lights?

Our heliport inset lights are engineered for high-performance longevity, with a LED life expectancy exceeding 50,000 to 100,000 hours of operation. Unlike traditional halogen lamps, these units require minimal maintenance, primarily limited to periodic cleaning of the optical surface to ensure peak photometric performance. The robust design and IPX8 sealing significantly reduce the need for internal component replacement, lowering the total cost of ownership (TCO) for the facility.

How do the materials used in Signalight inset lights resist corrosion in maritime or high-salinity environments?

The light fixtures and their corresponding shallow bases are manufactured from high-quality, corrosion-resistant aluminum alloys, further protected by specialized surface treatments such as anodizing or powder coating. This makes them ideal for offshore heliports or coastal airports. All exposed hardware is made from stainless steel, ensuring that the system remains structurally sound and easy to disassemble for inspections even after years of exposure to salt spray and humidity.
