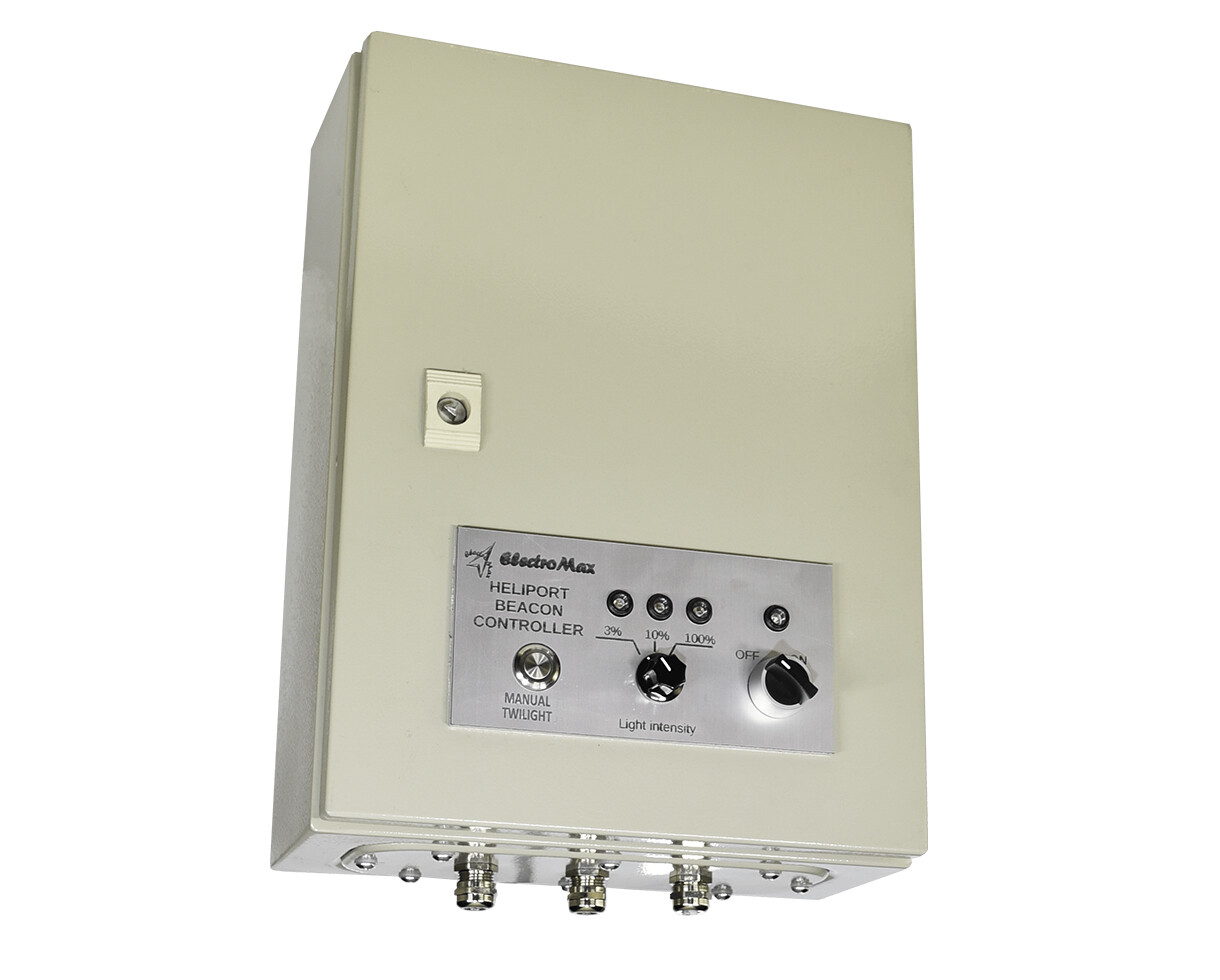

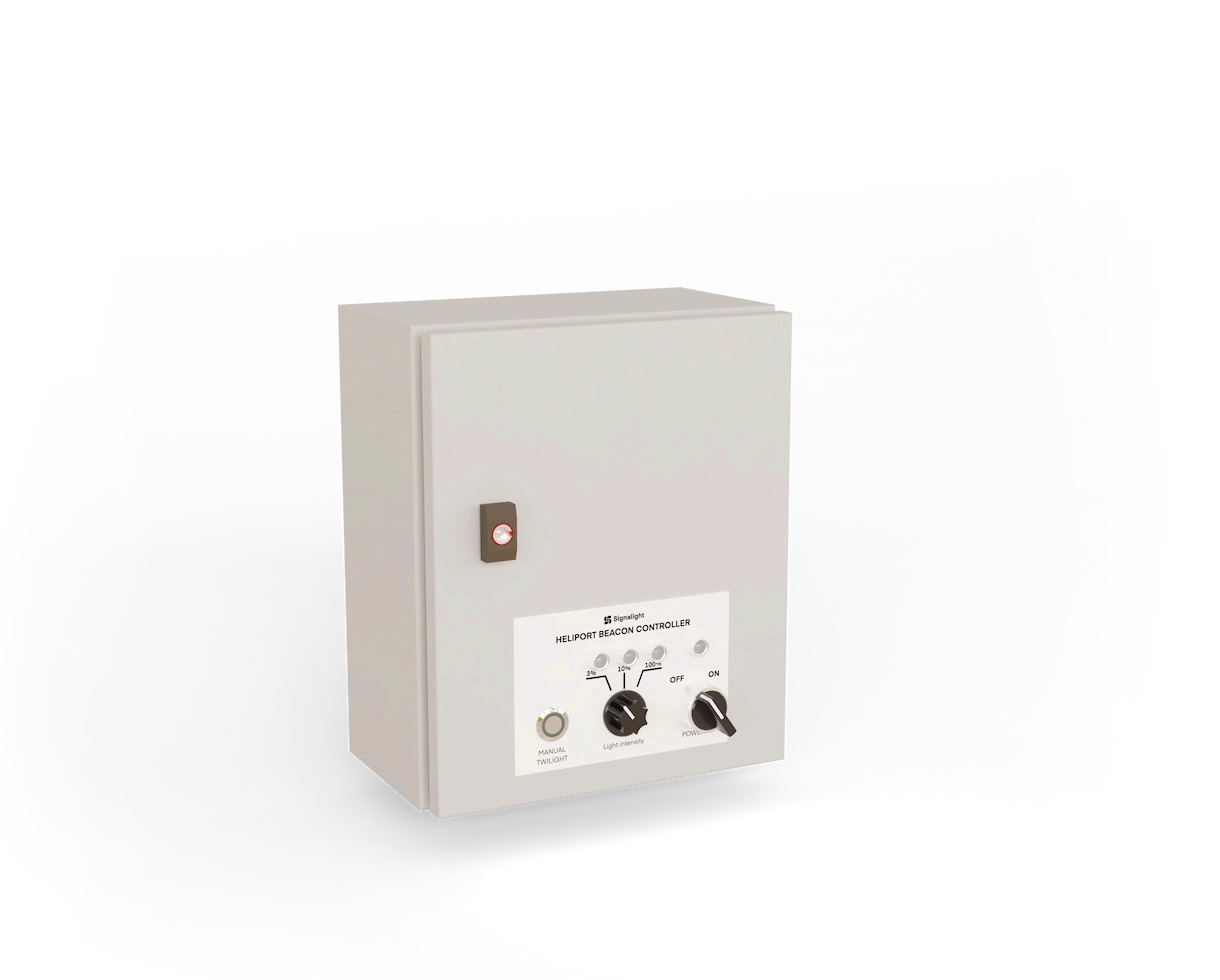

Beacon Controller

The beacon controller powers and controls the heliport beacon. This generates the sequence of light flashes showing the letter H in the MORSE code.

Usually, it is used when the main heliport controller is at a far distance from the heliport beacon so is more convenient to use a separate controller instead of using long cables to connect the beacon in the heliport controller.

Category ,
Product Code AL-076-AX
Add to my list


  • Input power range: 110-240V AC
  • Output voltage: 48V DC
  • Output power: max 120W
  • Light Intensity Control: using a rotary switch, the following brightness levels can be set:
    • 3%
    • 10%
    • 100%
  • Can be controlled manually or as an option automatically from a twilight dimming controller

Beacon Controller Accessories

Download Beacon Controller datasheet

Datasheet PDF 158 KB Download PDF
