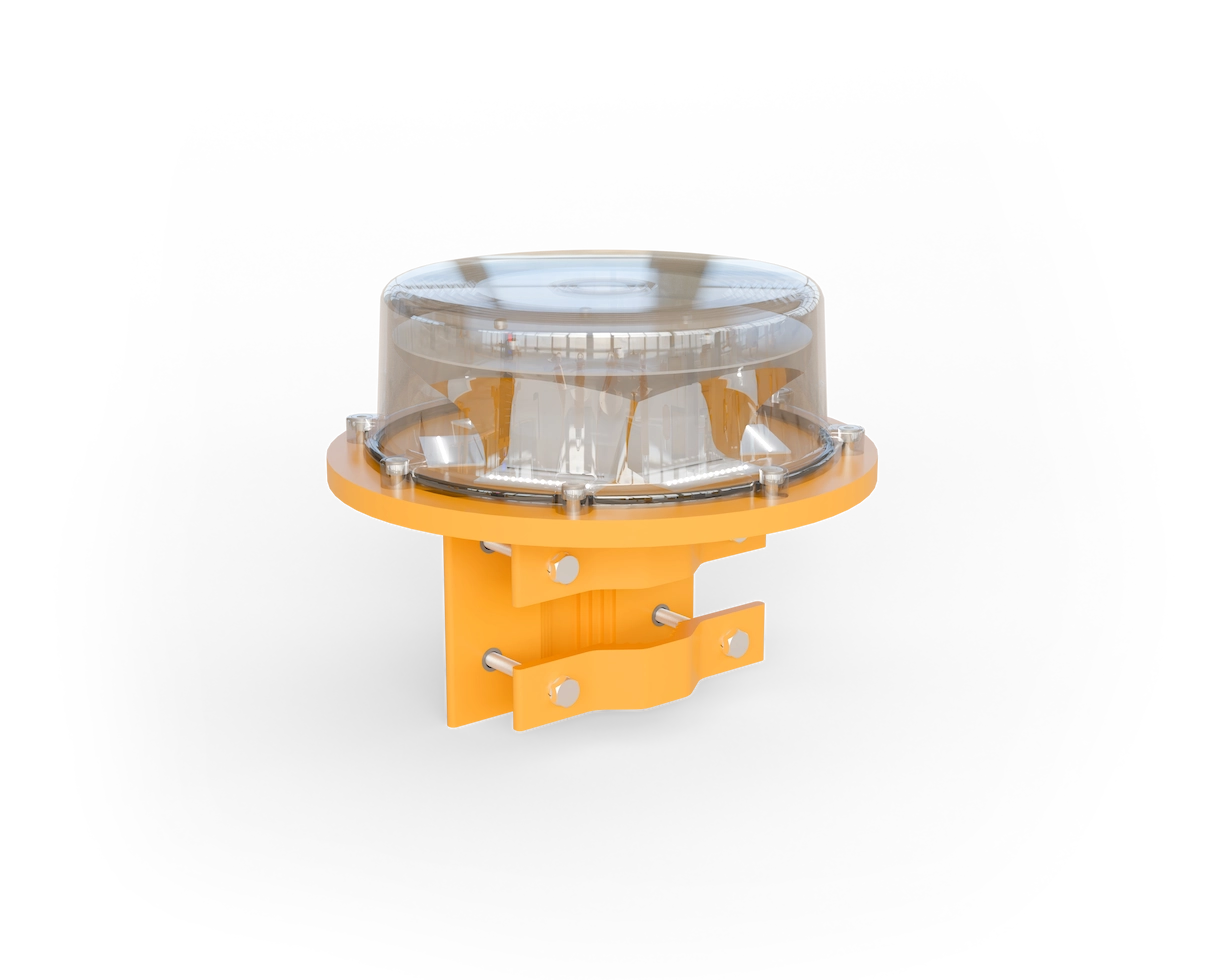

Heliport Beacon

Certified Heliport Beacon According to Standards:

  • ICAO: Annex 14, Volume I – Aerodrome Design and Operations
  • ICAO: Annex 14, Volume II – Heliports
  • IEC TS 61827: Electrical installations for lighting and beaconing of aerodromes
Category ,
Product Code AL-061-84-XX
Add to my list

Heliport Beacon Application

A Heliport beacon is a powerful light, omnidirectional intended to signal the presence of a heliport. The Heliport beacon flashes in Morse code the letter H.

It is used especially when the helipads are surrounded by lights like in a city where it is hard to distinguish the heliports from the other lights.

Heliport Beacon Description

  • Light fixture body: powder-coated aluminum, RAL 1004 (aviation yellow)
  • Diffuser: clear poly-carbonate
  • Cable gland: nickel-plated brass
  • Fasteners: stainless steel
  • Light fixtures are provided with anti condensation valve
  • Light fixtures are UV protected

Electrical Characteristics

The heliport beacon must be powered and controlled by a special controller which creates the flashing sequence and alow the brightness control. The Heliport Beacon can be also controlled by the main heliport controller.

Maximum pick power consumption is 120 W.

The average consumption is less than 20W.

Optical Characteristics

The heliport beacon uses OSRAM White LEDs.

The beam is omnidirectional and the vertical distribution is from 0 to 10 degrees.

The brightness intensity values comply with: ICAO Annex 14 Vol.2 fig.5-11/1

The measured trichromatic coordinates correspond to color range requirements in:
ICAO Annex 14 – Aerodromes Vol.1, fig. A1-1-1b – Colors for aeronautical ground lights (solid-state lighting).

Brightness control is made in three steps 3, 10 and 100%.

Download Heliport Beacon datasheet

Datasheet PDF 483 KB Download PDF
