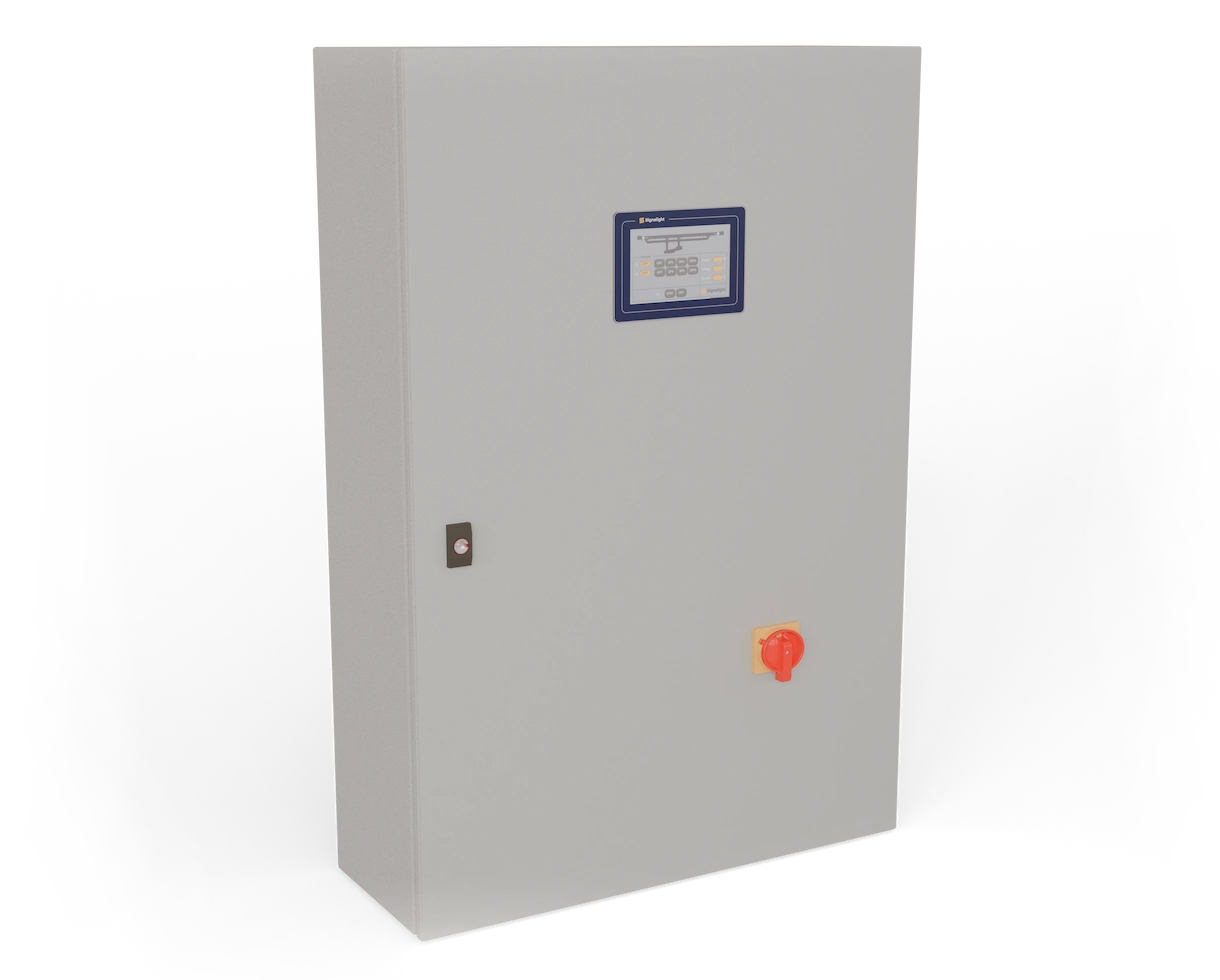

Controller V4

The V4 controller is an electrical cabinet including all equipment needed to power, protect, control and monitor the lighting systems of a heliport or airport. It is a customized controller, adapted for each project.

Category ,
Product Code AL - 080 - AX
Add to my list

Description

Each controller is fully customizable, allowing users to select:

  • Type of circuits
  • Number of circuits (theoretical no limits)
  • Control options

The controller can have different circuits factory configurable:

  • 48 V DC – dimmable (used usually for heliports)
  • 1,4 A constant current – dimmable (used for serial loop for airports)
  • 230 V AC – max 2000 W – not dimmable (used for flashing lights)

The system can be controlled as follow:

  • Front-panel touchscreen (standard)
  • Remote console through RS485 protocol communication (optional)
  • Over the INTERNET (optional)
  • ARCAL – Aircraft Radio Control of Aerodrome Lighting (optional)
  • ALCMS – Airport Lighting Control and Monitoring System (optional)

Features

  • Input power range: 110-240 V AC,  50/60 Hz
  • Powder-coated metal cabinet (gray color)
  • LCD Display
  • 3-step brightness control for heliports & 5-step brightness control for airports
  • limitless* independent circuits
  • power consumption and failure monitoring
  • control rights settings

*the configuration allows the controller to manage, theoretically, an infinite amount of circuits

Download Controller V4 datasheet

Controller V4 Datasheet PDF 865 KB Download PDF
