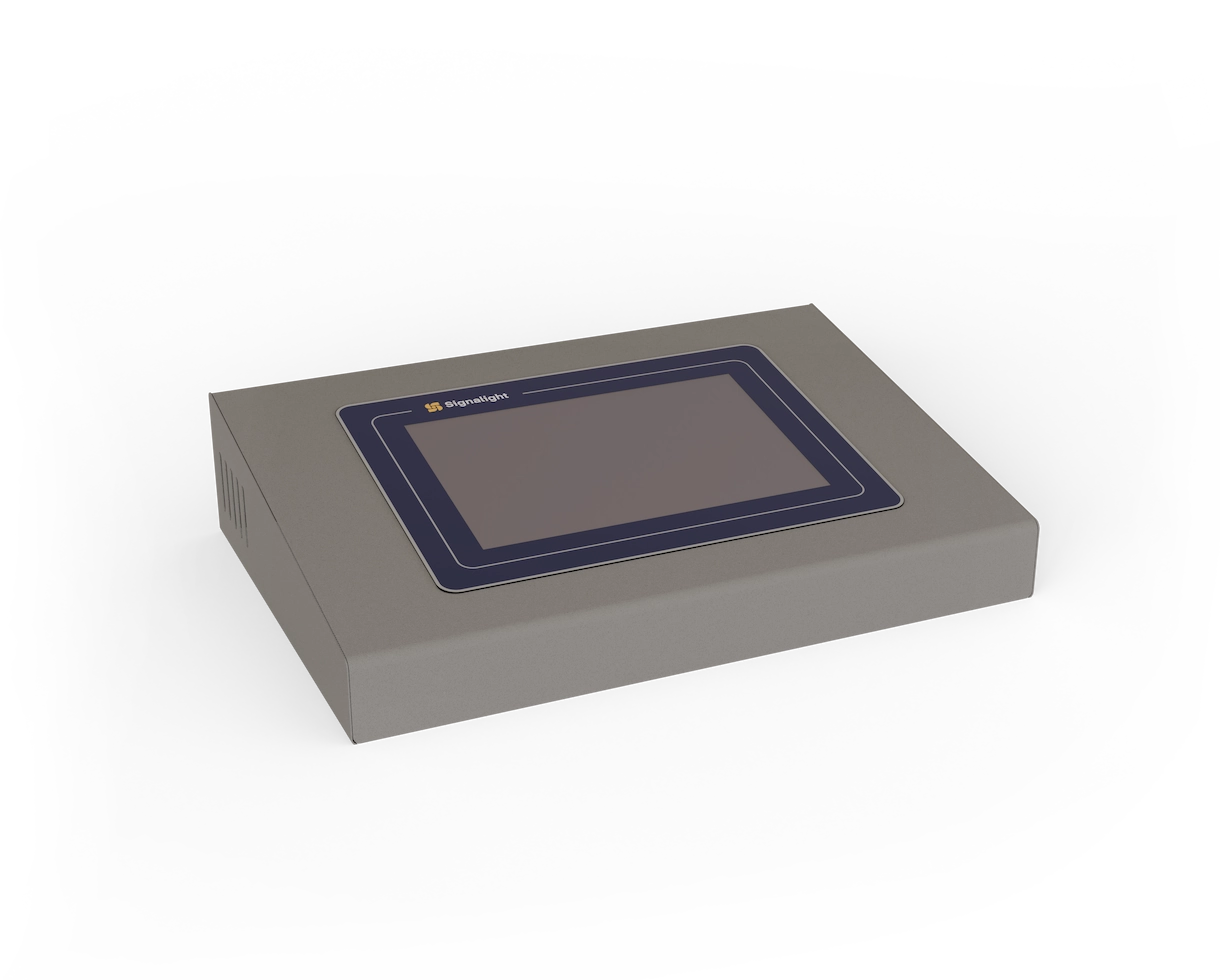

Console Controller V4

This is a console for the remote control of the Controller V4. Usually the controllers and all electrical cabinets are placed in to a special room but the control is made from the tower or a control room. This console communicates on RS485 protocol with the controller so you can turn ON/OFF the power on different circuits, can choose the brightness and check the parameters on the display for the lighting and guidance systems.

Category ,
Product Code AL - 160 - AX
Add to my list Share this page
Add to my list

Description

The console controller has different circuits ON/OFF factory configurable:

  • 48 V DC – max 500 W, dimmable
  • 1,4 A constant current – max 500 W, dimmable
  • 230 V AC – max 2000 W – not dimmable

Settings:

  • Total or individual circuits brightens level control (dimming) – 10%, 30% and 100%
  • Stand by
  • Total OFF
  • Circuits ON/OFF

LCD display showing:

  • Brightness level
  • System Status
  • Individual circuits ON or OFF
  • Monitored errors

Download Console Controller V4 datasheet

Console Controller V4 Datasheet PDF 483 KB Download PDF
