Wind Direction Indicator

Gives a clear indication of the direction of the wind and a general indication of the wind speed

Category , , ,
Product Code AL-081-XX
Add to my list

Purpose

A heliport shall be equipped with at least one wind direction indicator.

A wind direction indicator shall be located so as to indicate the wind conditions over the FATO and TLOF and in such a way as to be free from the effects of airflow disturbances caused by nearby objects. It shall be visible from a helicopter in flight, in a hover or on the movement area.

The wind direction indicator is powered usually from the mains and has a photocell so the external projectors and the obstruction light is powered automatically during the night.

Description

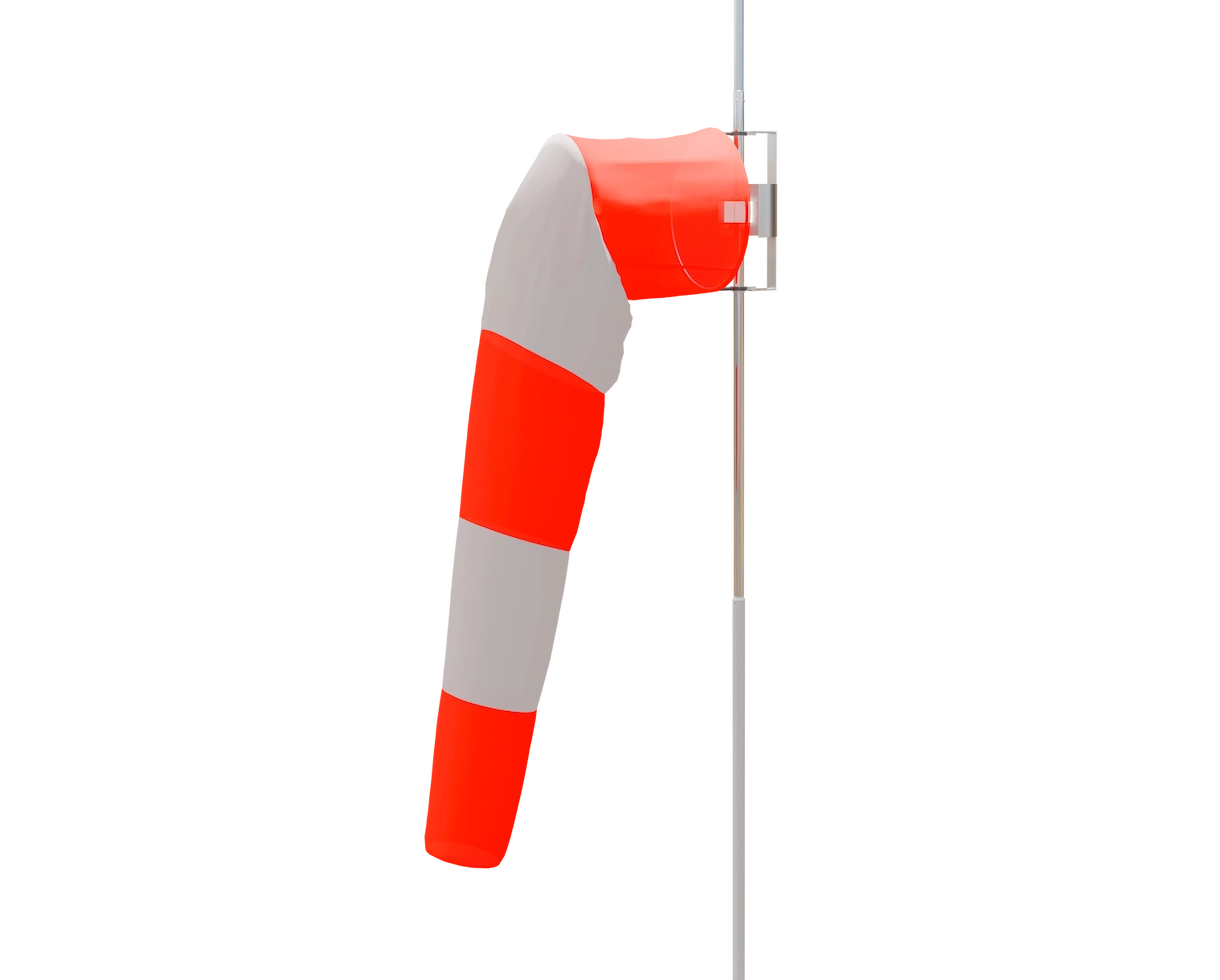

  • Windsock material Lightweight Polyester Fabric, 2.4 m long, larger diameter 0.6 m
  • Pole Stainless steal
  • Base designed as a hinge to be easy to change the socks/cone

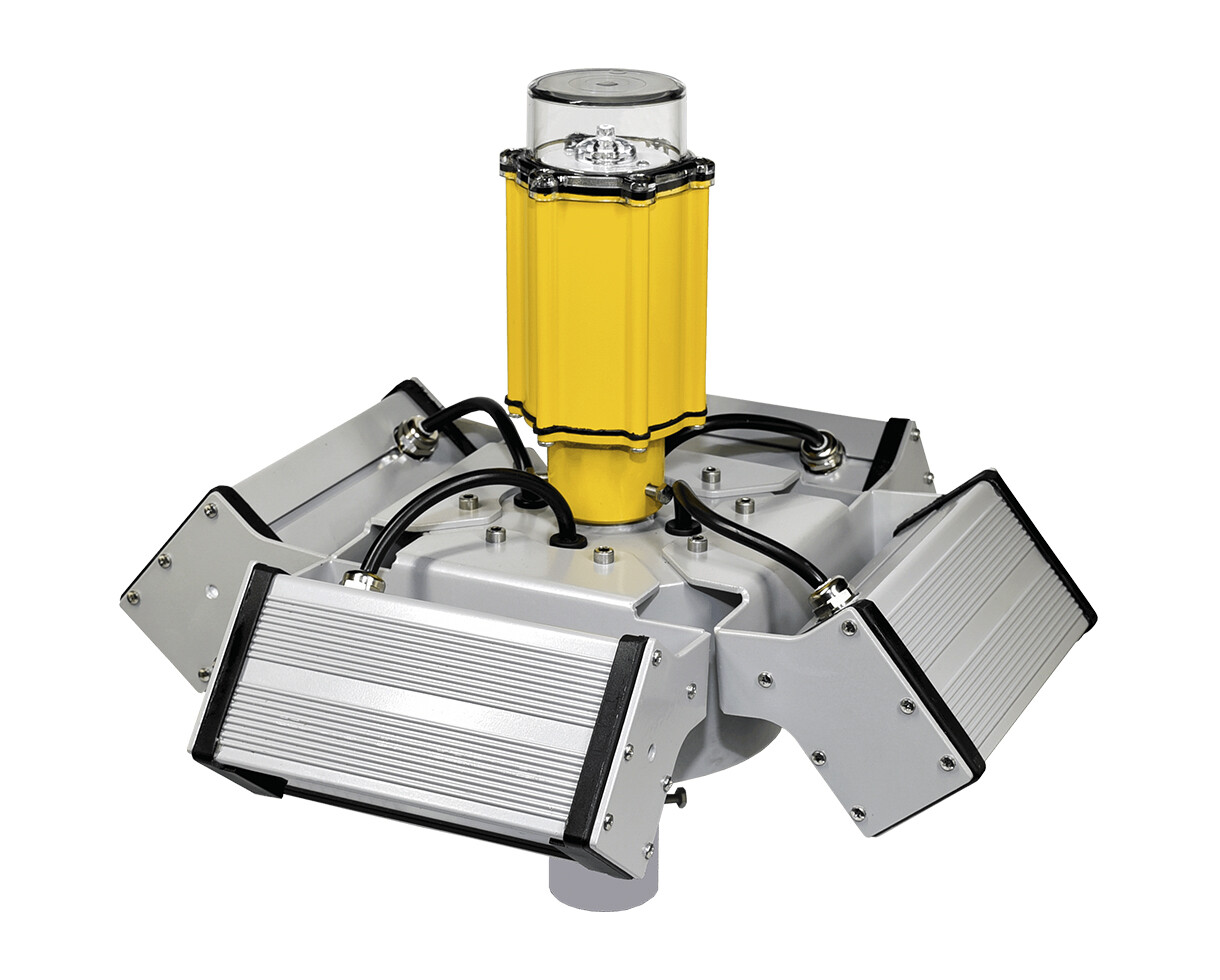

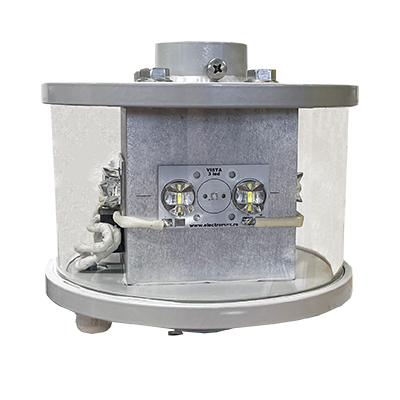

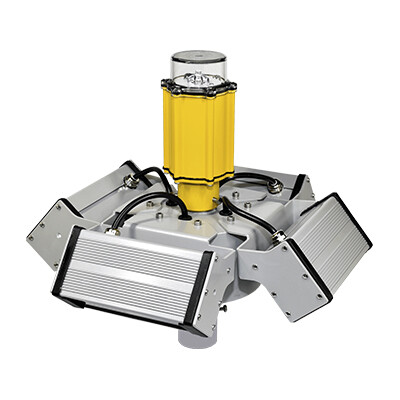

  • External or internal lighting of the cone with LED projectors
  • Comes with an obstruction light on top for marking
  • The junction box includes a photocell for turning the lights and obstruction lights automatically during the night
  • Fasteners made of Stainless steel

Compliance/certification

Compliant According to Standards:

  • ICAO: Annex 14, Volume I – Aerodrome Design and Operations
  • ICAO: Annex 14, Volume II – Heliports

Wind Direction Indicator Accessories

Download Wind Direction Indicator datasheet

Datasheet PDF 285 KB Download PDF
