TD/PM Circle-H Lighting System

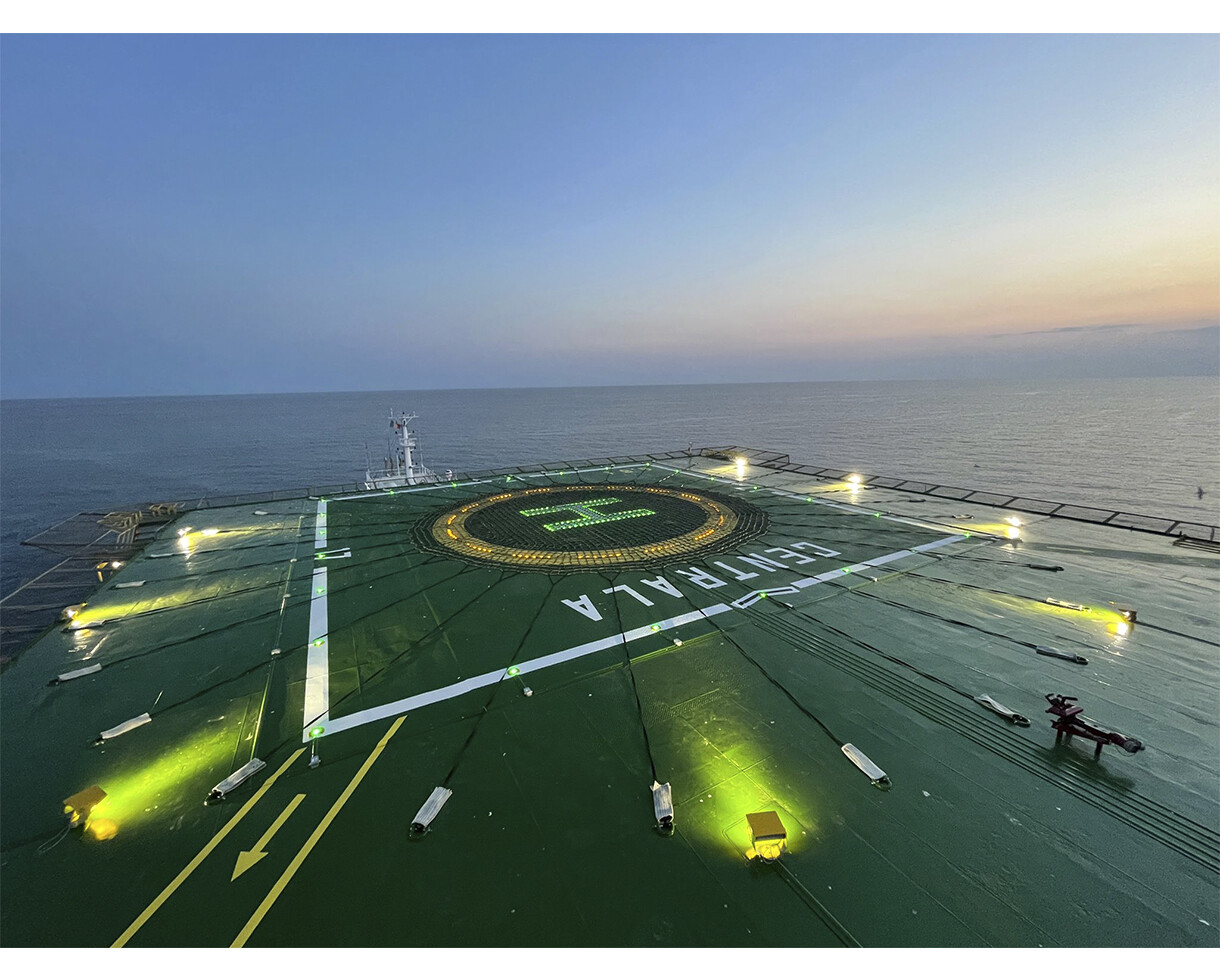

Offshore heliports employ a wide range of offshore landing facilities, including Touchdown lighting system / positioning & circle markings.

Compliance to Standards:

  • ICAO: Doc 9261, Heliport Manual, Fourth Edition, 2020

Product Code:

AL-120-05-GR

AL-121-04-GR

AL-122-03-GR

AL-123-06-GR

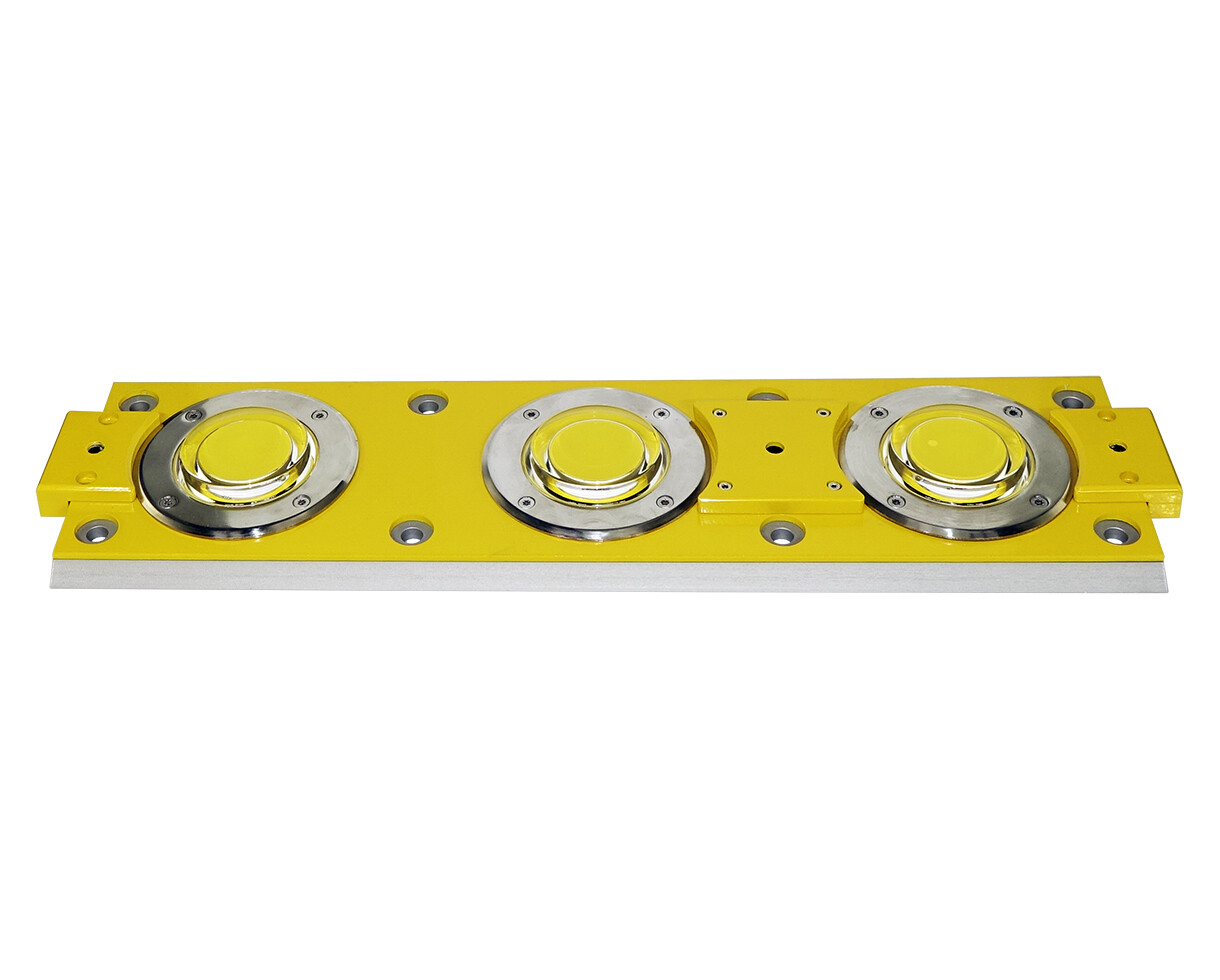

AL-124-03-YE

H TD/PM lighting system is made up of:

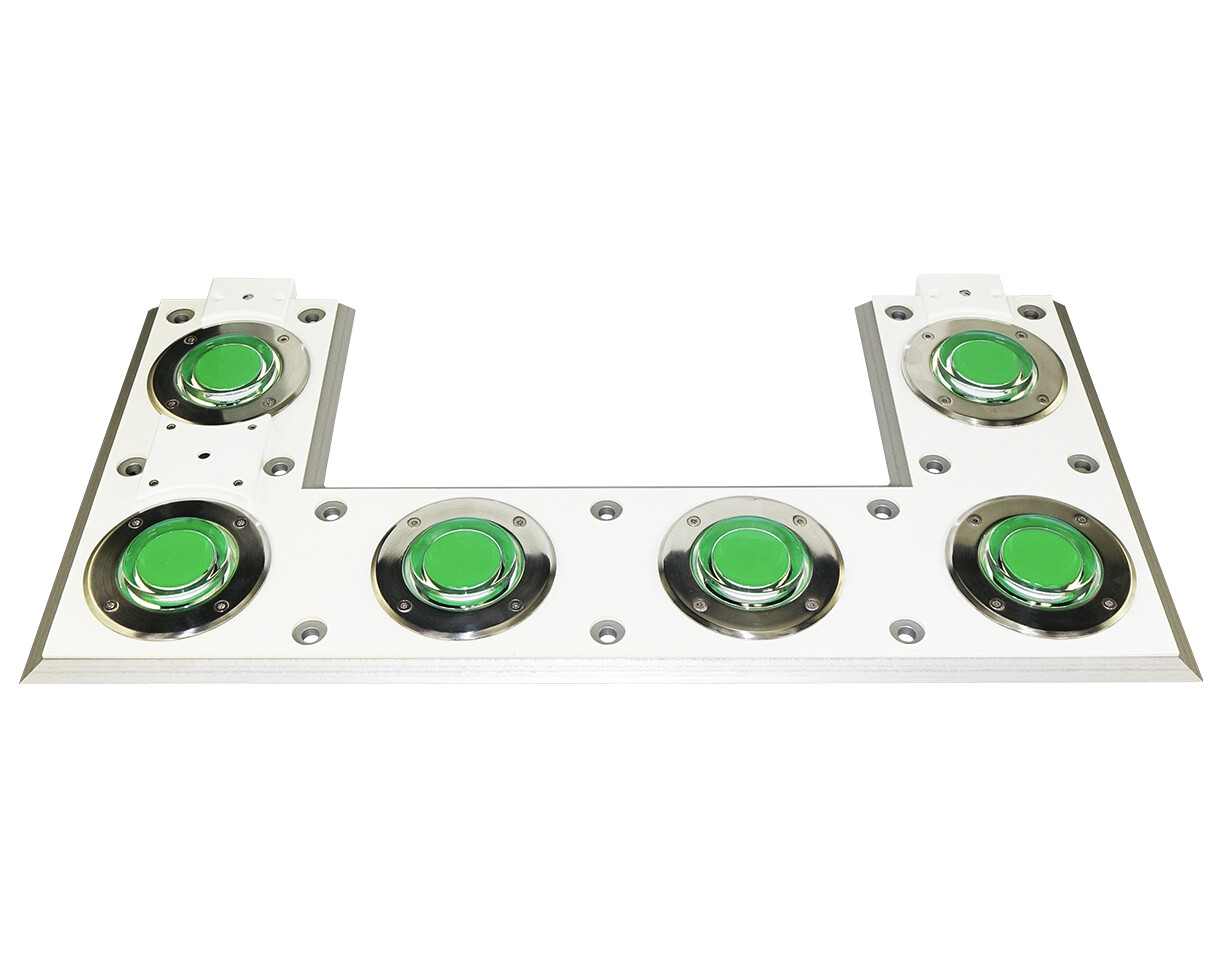

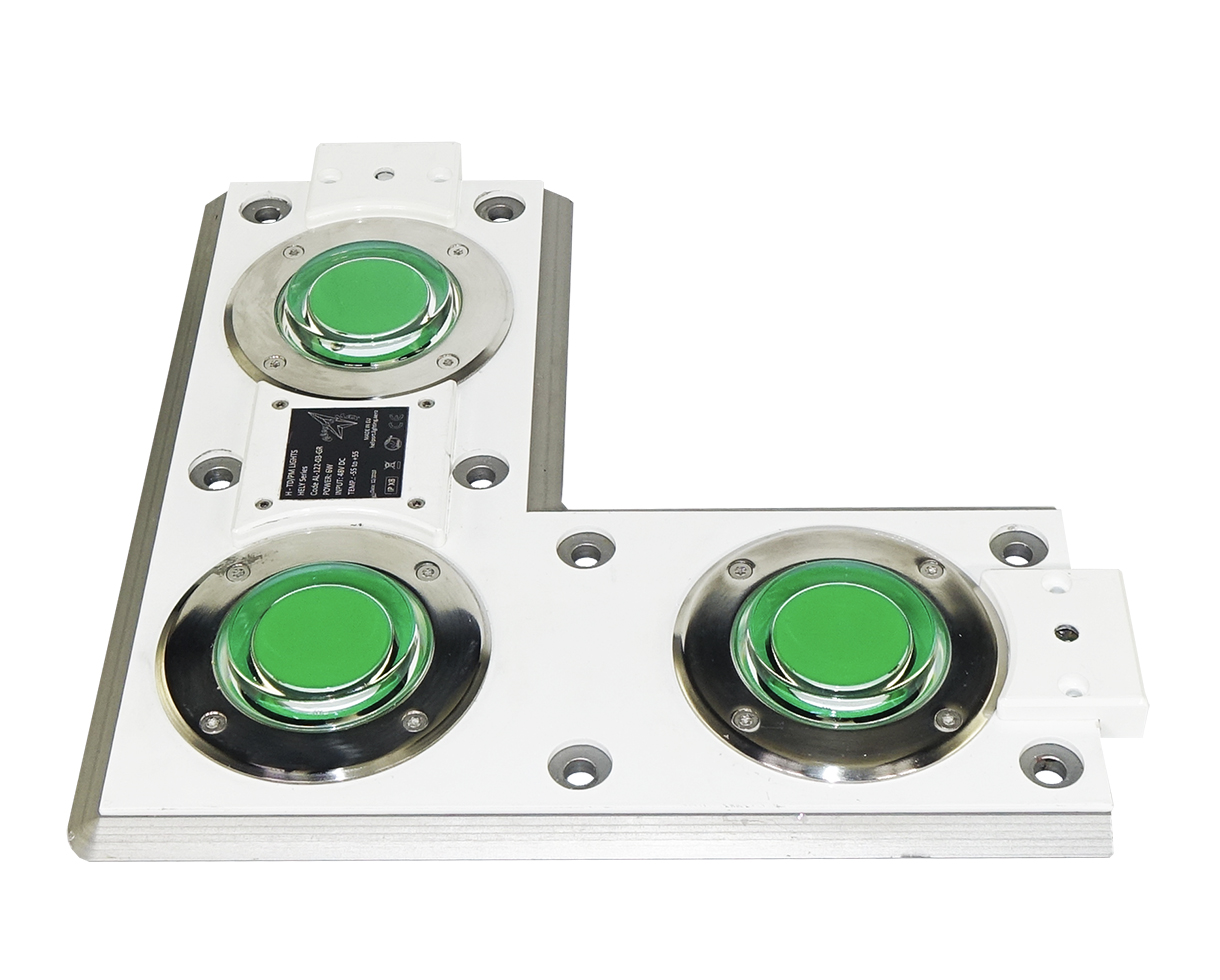

  • 4 pcs. AL-122-03-GR

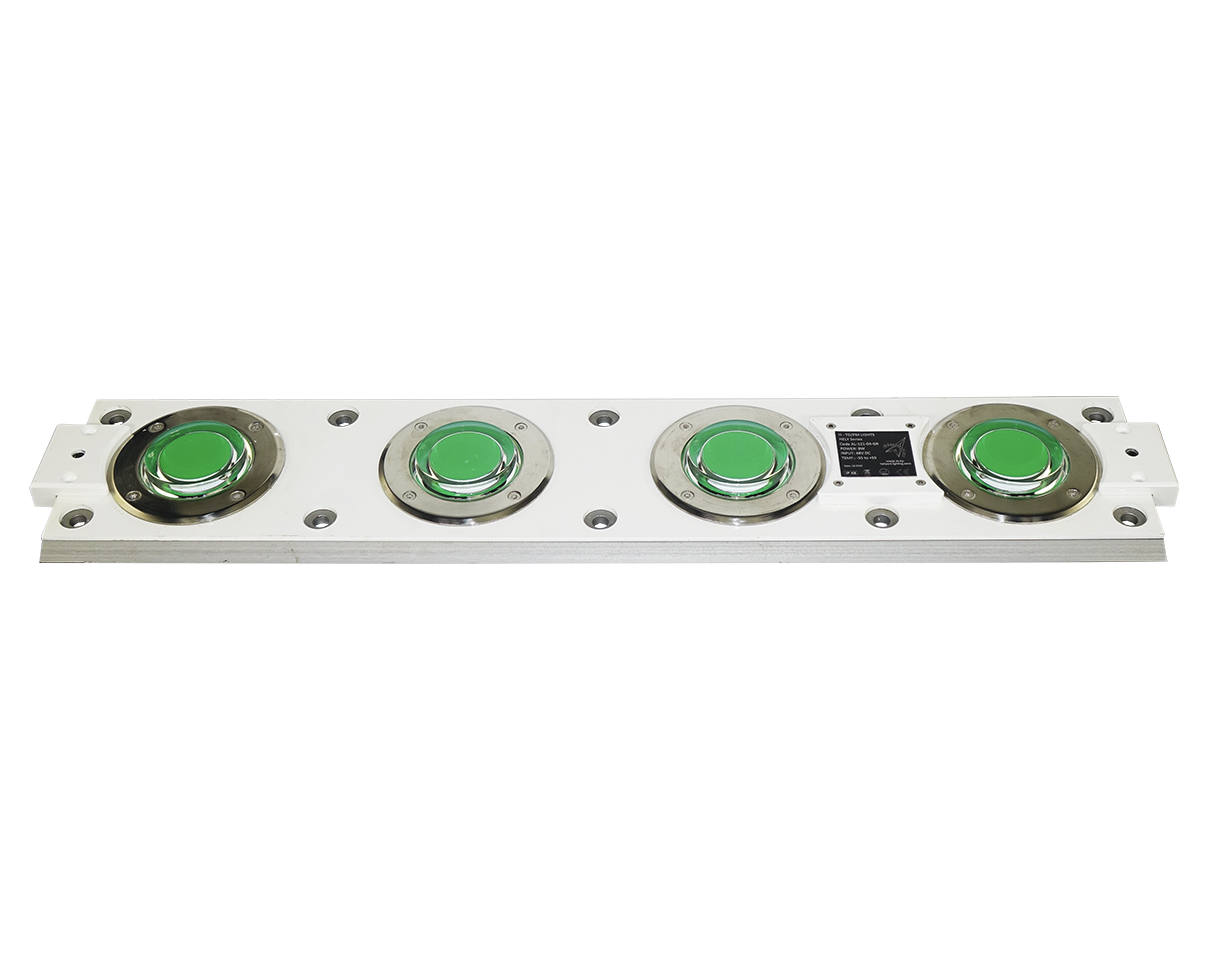

  • 4 pcs. AL-123-06-GR
  • 8 pcs. AL-121-04-GR

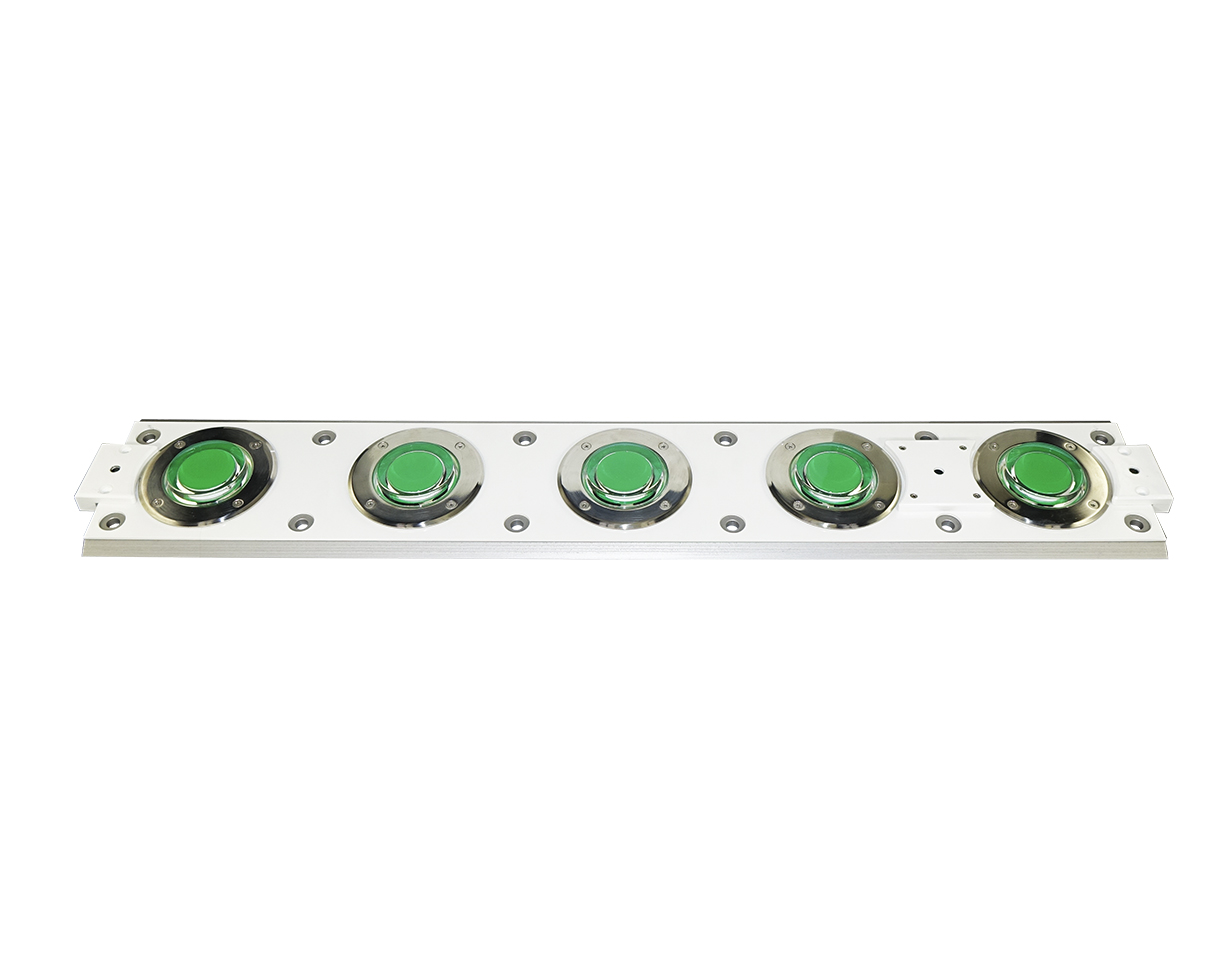

  • 6 pcs. AL-120-05-GR
Category
Product Code
Add to my list

Description

  • Housing: powder-coated aluminium, aviation yellow or white
  • Disperser: hardened glass
  • Disperser flange: nickel-plated ring
  • Fasteners: stainless steel
  • Light fixtures are UV protected

Electrical Characteristics

Power supply 48V DC from controller – dimmable: 100% ,30%, 10%

Power consumption

  • AL-120-05-GR – 10W
  • AL-121-04-GR – 8W
  • AL-122-03-GR – 6W
  • AL-123-06-GR – 12W
  • AL-124-03-YE – 6W

Accessories

Downloads

Datasheet PDF 700 KB Download PDF
