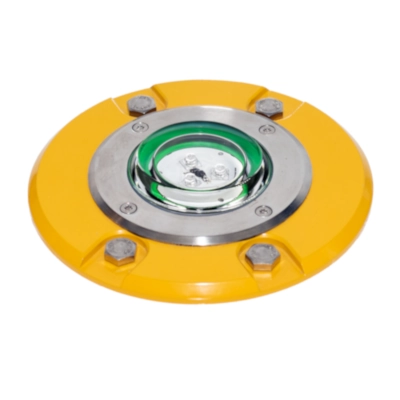

Inset TLOF heliport light

Heliport Touchdown and Lift Off Area Perimeter Lights (TLOF)

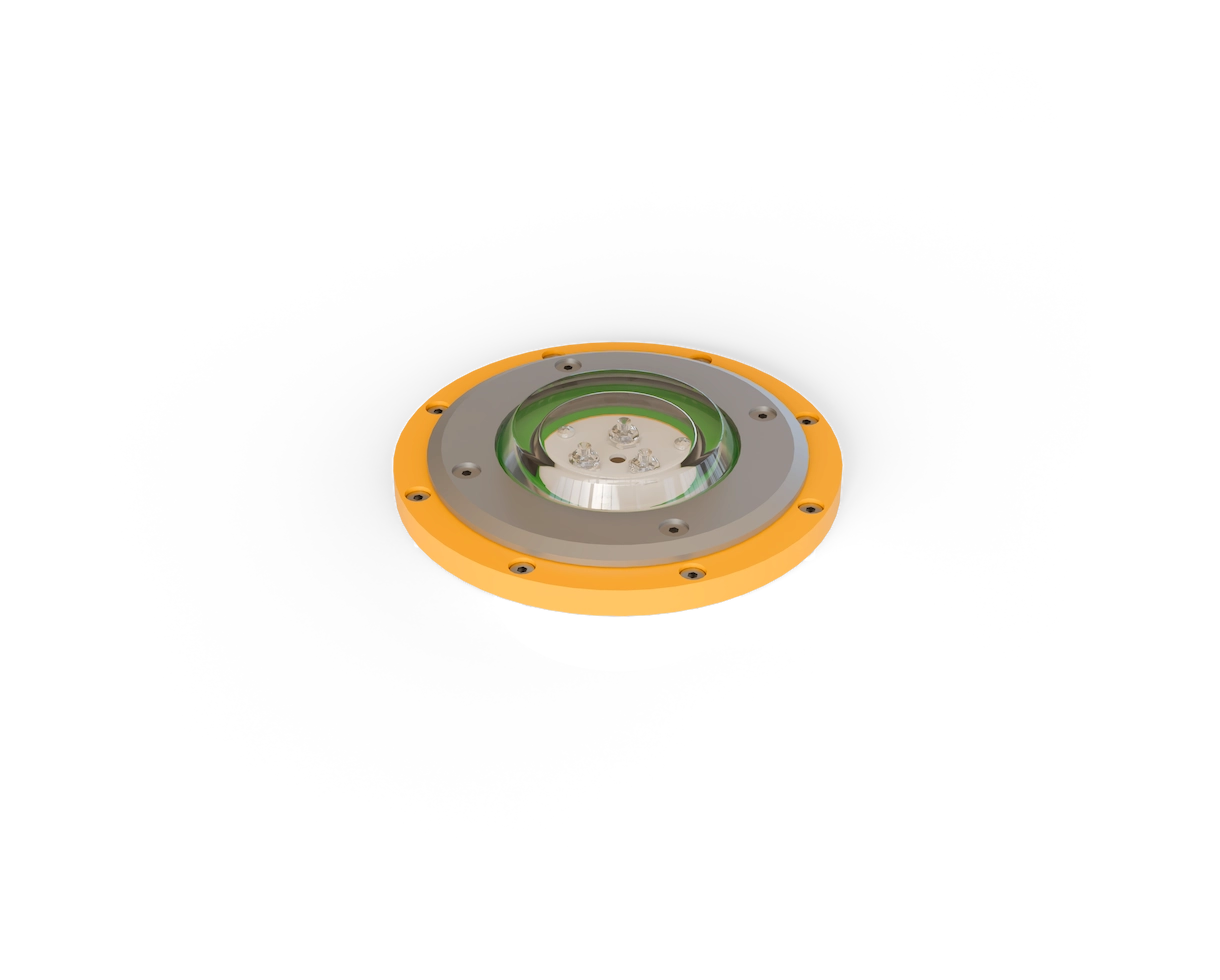

An Inset TLOF Heliport Light is a permanently installed, flush-mounted lighting unit embedded in the surface of a Heliport’s Touchdown and Lift-Off (TLOF) area, designed to mark its boundaries and assist pilots during landing and take-off, particularly in low-visibility conditions.

Certified According to Standards:

  • ICAO: International Civil Aviation Organization, Aerodromes, Annex 14, Vol. 1
  • ICAO: Annex 14, Volume II – Heliports
  • IEC TS 61827:
    Electrical installations for lighting and beaconing of aerodromes.
    Characteristics of inset and elevated luminaires used on aerodromes
    and heliports
Category ,
Product Code AL-073-03-GR
Add to my list Share this page
Add to my list

Description

  • Housing – Powder coated aluminium RAL 1004 (aviation yellow)
  • Disperser – hardened glass
  • Disperser flange – nickel plated ring
  • Cable gland – nickel plated brass
  • Fasteners – stainless steel
    Light fixtures are provided with anti condensation valve.

Electrical Characteristics

  • Power consumption: 4.5 W
  • Power supply:
    • 48 VDC from controller – dimmable: 100%, 30%, 10%
    • 90-230 V, 50/60 Hz – non dimmable
    • 1.4 A CC – dimmable: 100%, 30%, 10% (internal bypass + SPD)

Inset TLOF heliport light Accessories

Download Inset TLOF heliport light datasheet

Datasheet PDF 340 KB Download PDF
