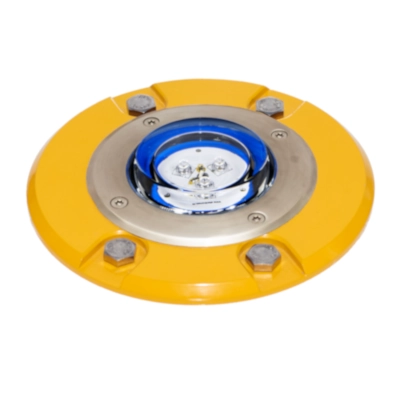

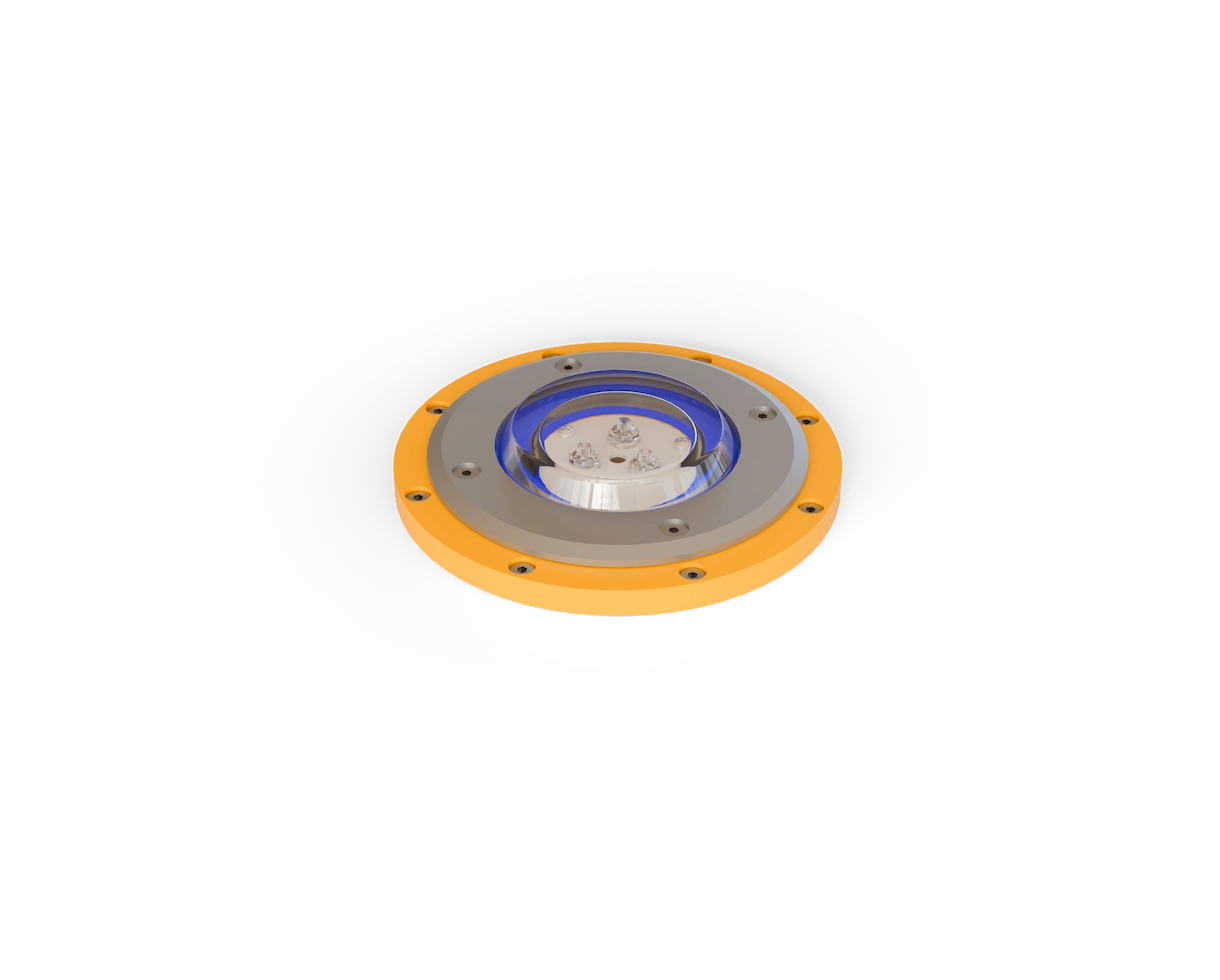

Inset Taxiway heliport light

About Inset Taxiway Lights

An Inset Taxiway Heliport Light is a flush-mounted LED fixture installed in the ground to guide helicopters along taxi routes, enhancing visibility, safety, and compliance with aviation standards.

Certified According to Standards:

  • ICAO: International Civil Aviation Organization, Aerodromes, Annex 14, Vol. 1
  • ICAO: Annex 14, Volume II – Heliports
  • IEC TS 61827:
    Electrical installations for lighting and beaconing of aerodromes.
    Characteristics of inset and elevated luminaires used on aerodromes
    and heliports
Category ,
Product Code AL-072-03-BL
Add to my list Share this page
Add to my list

Description

  • Housing – Powder coated aluminium RAL 1004 (aviation yellow)
  • Disperser – hardened glass
  • Disperser flange – nickel plated ring
  • Cable gland – nickel plated brass
  • Fasteners – stainless steel
    Light fixtures are provided with anti condensation valve.

Electrical Characteristics

  • Power consumption: 3.15 W
  • Power supply:
    • 48 VDC from controller – dimmable: 100%, 30%, 10%
    • 90-230 V, 50/60 Hz – non dimmable
    • 1.4 A CC – dimmable: 100%, 30%, 10% (internal bypass + SPD)

Inset Taxiway heliport light Accessories

Download Inset Taxiway heliport light datasheet

Datasheet PDF 352 KB Download PDF
