Flat Taxiway – FD

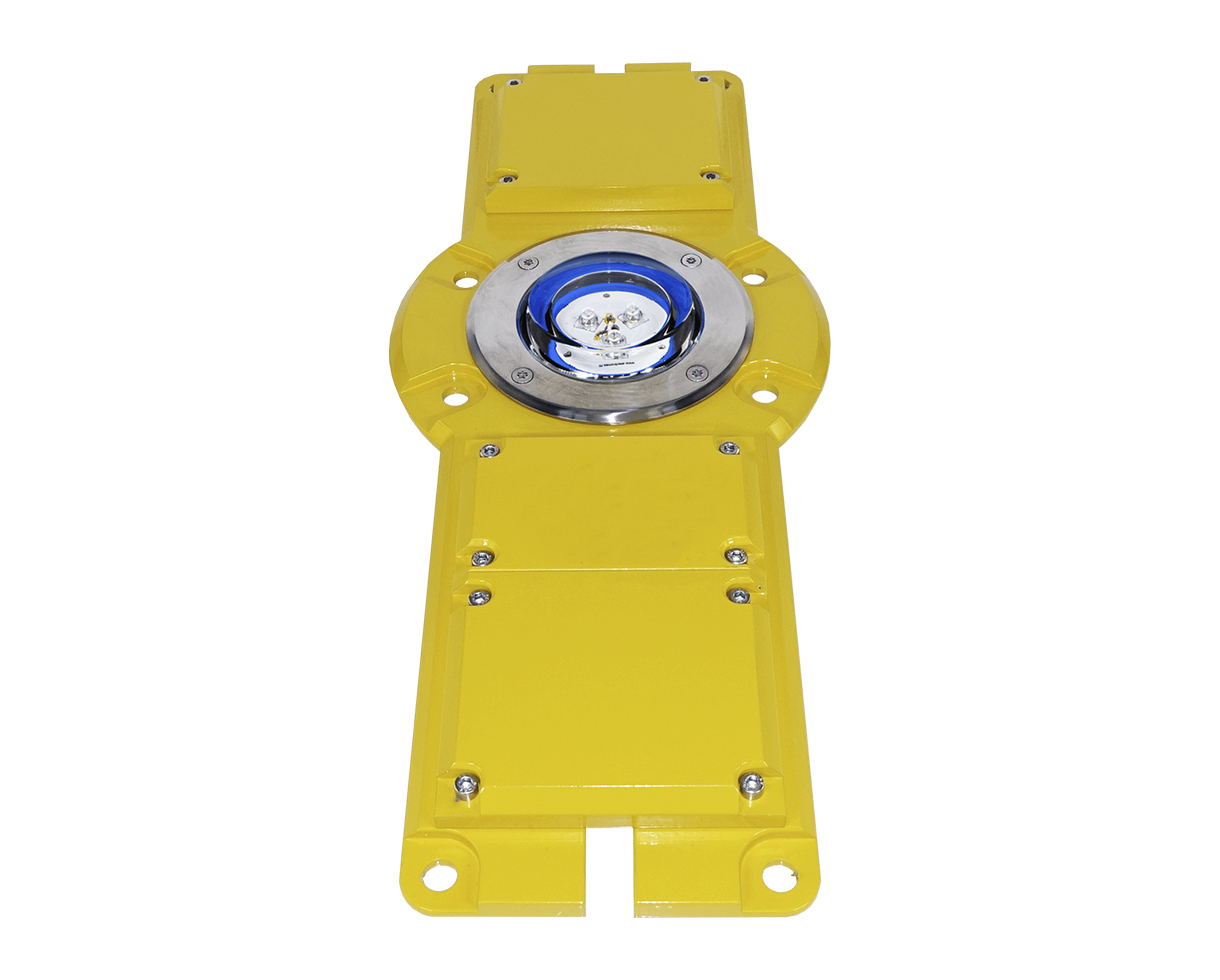

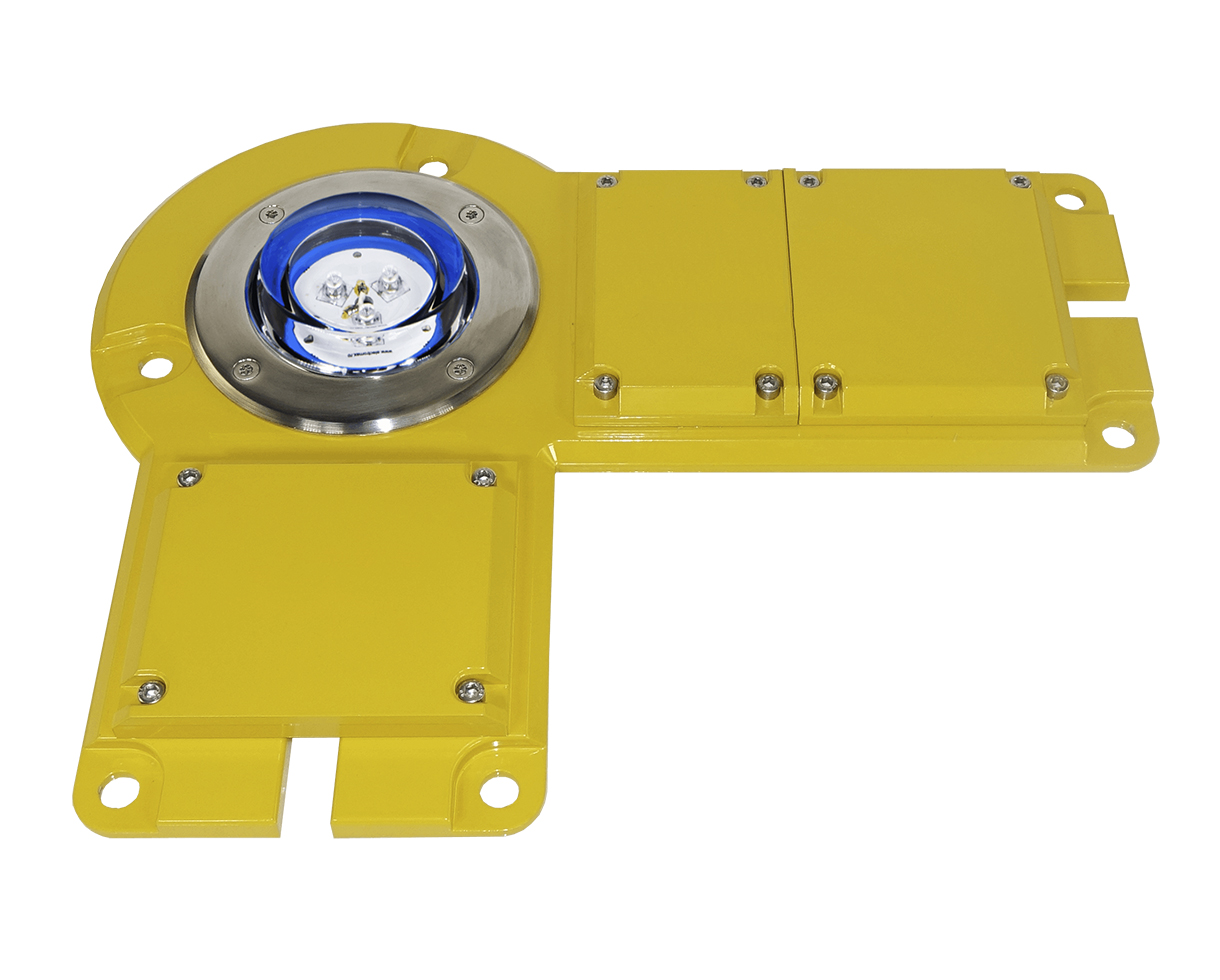

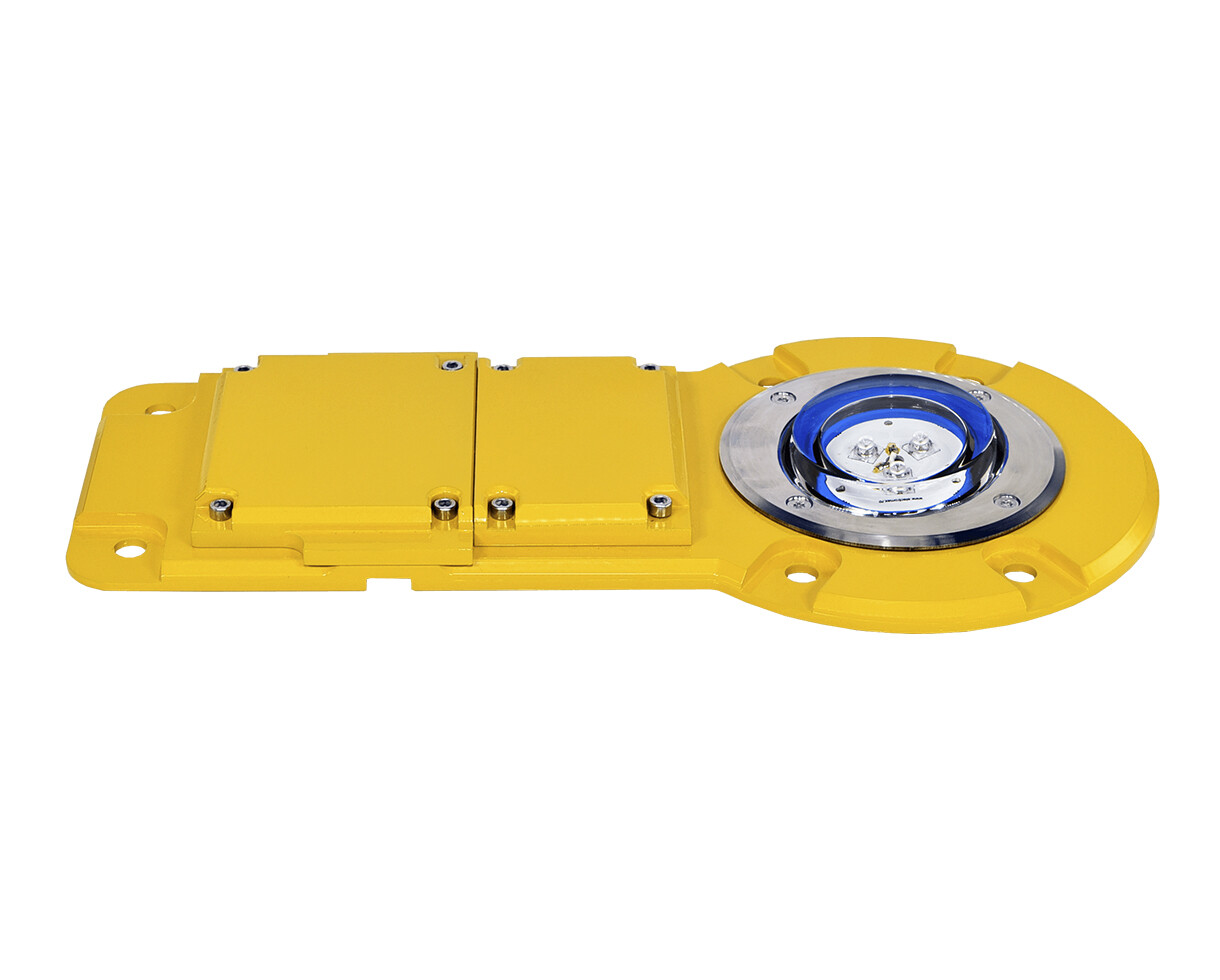

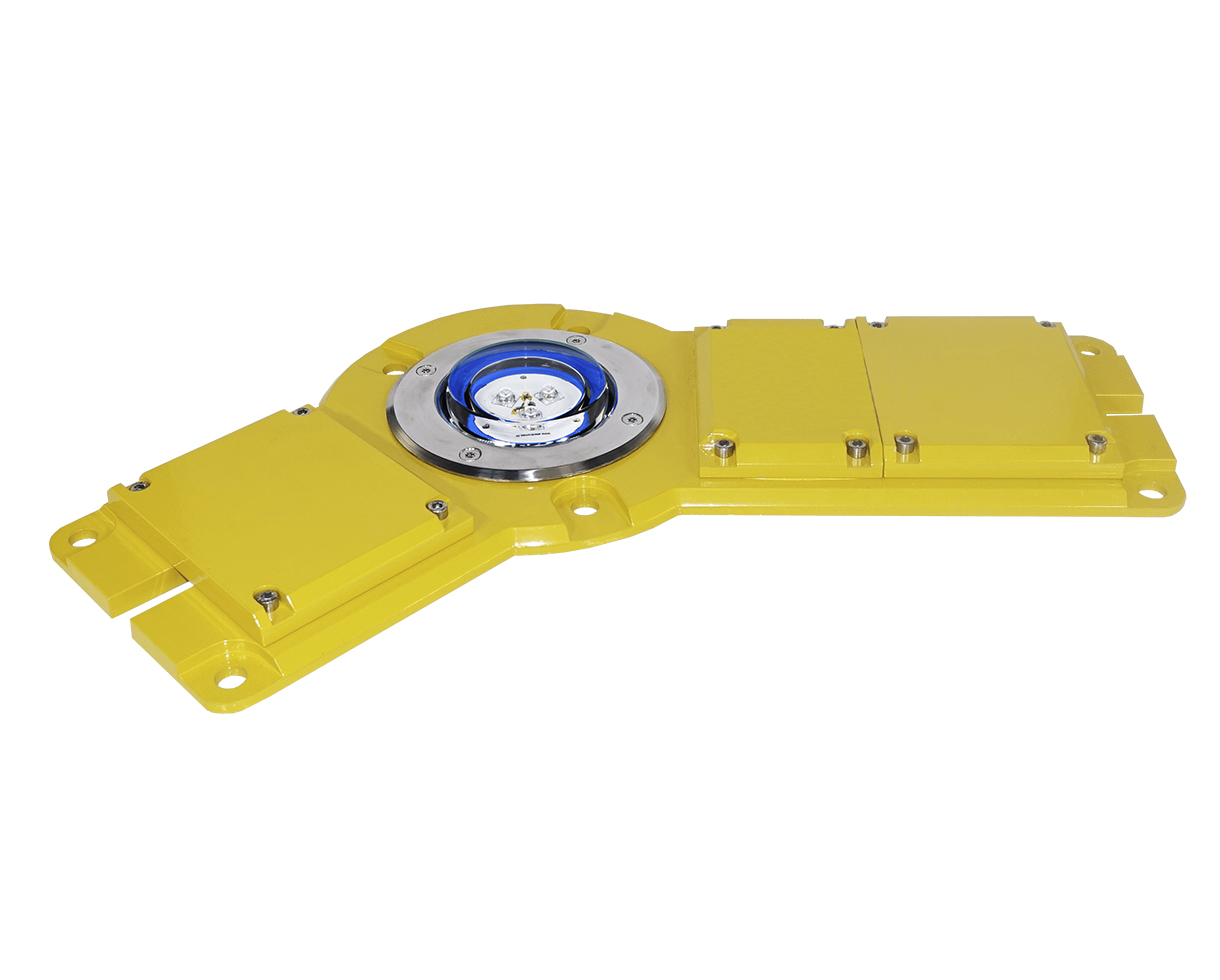

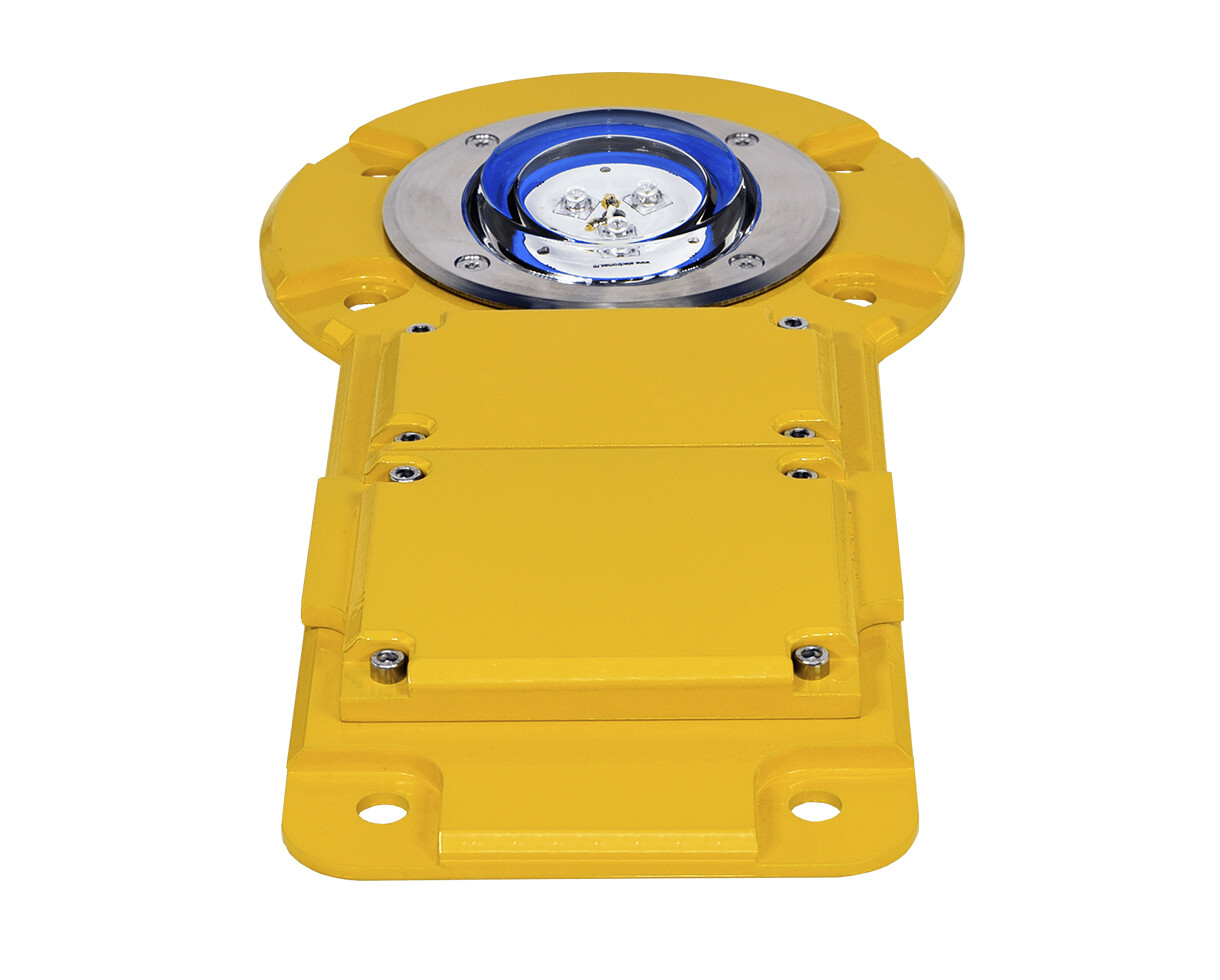

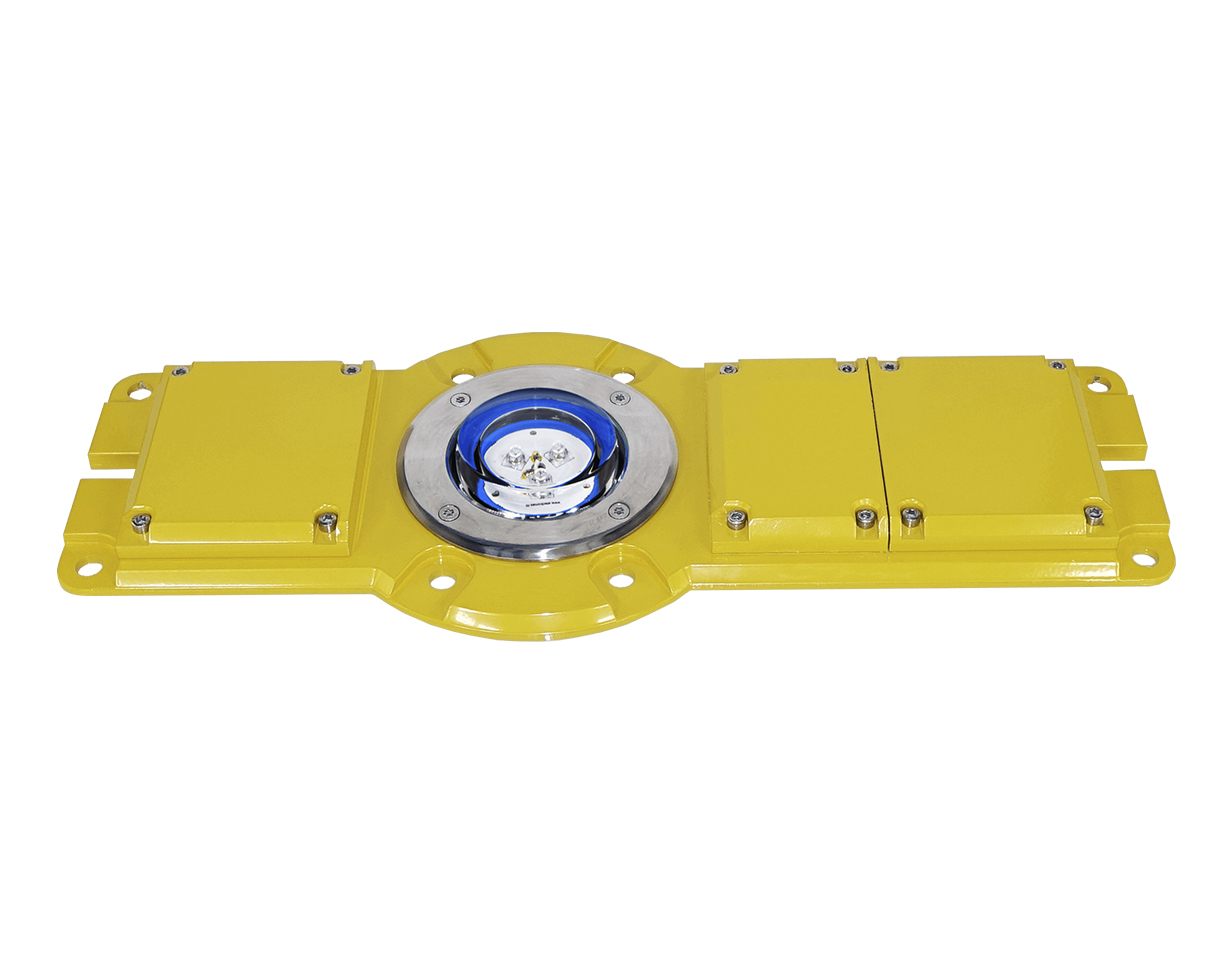

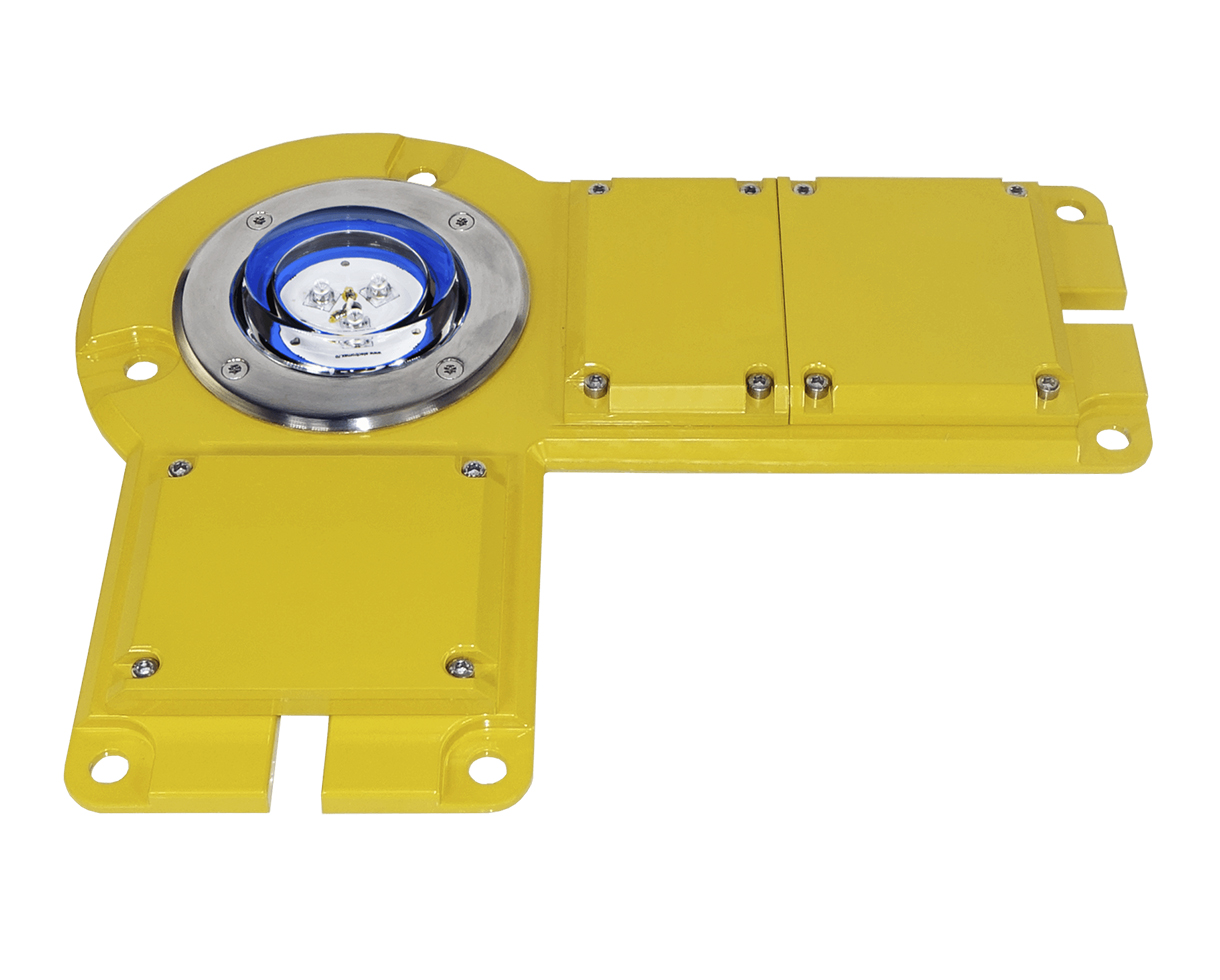

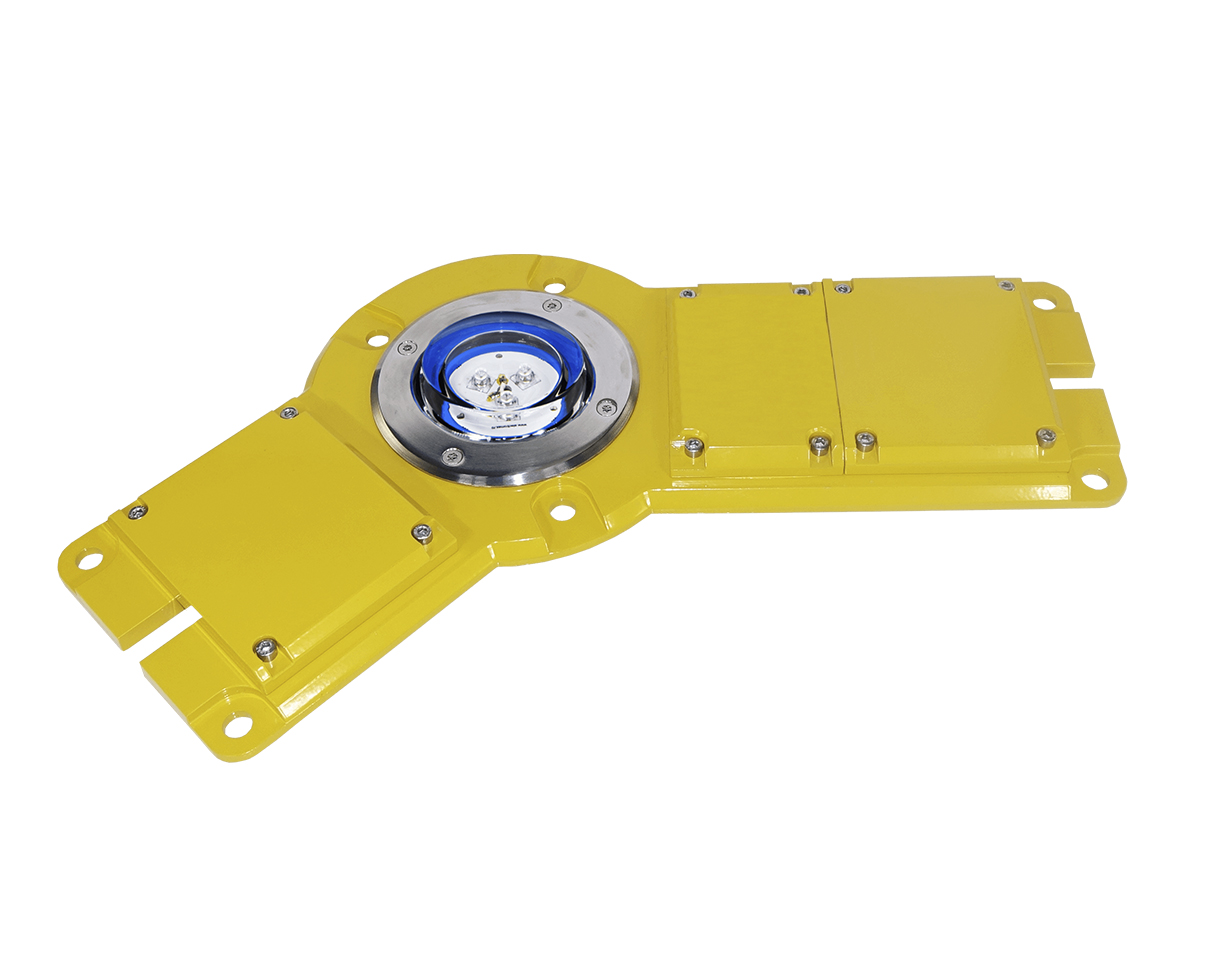

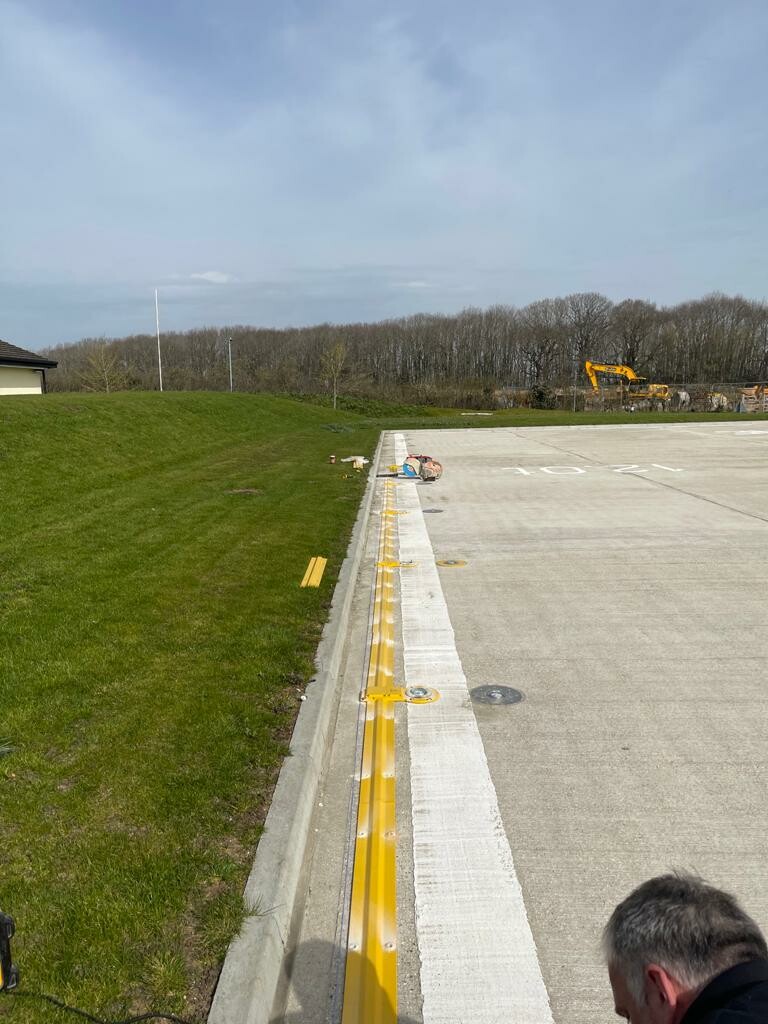

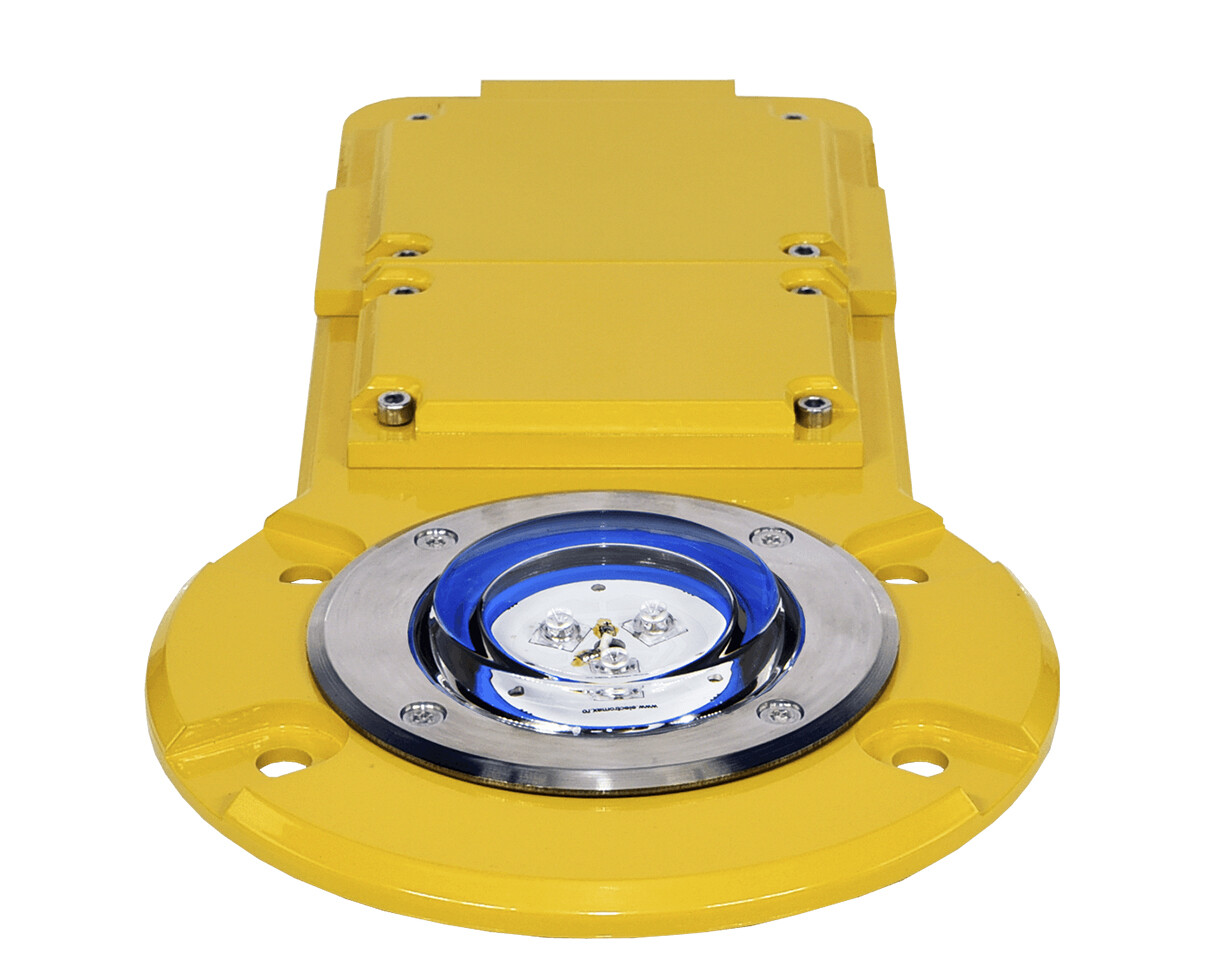

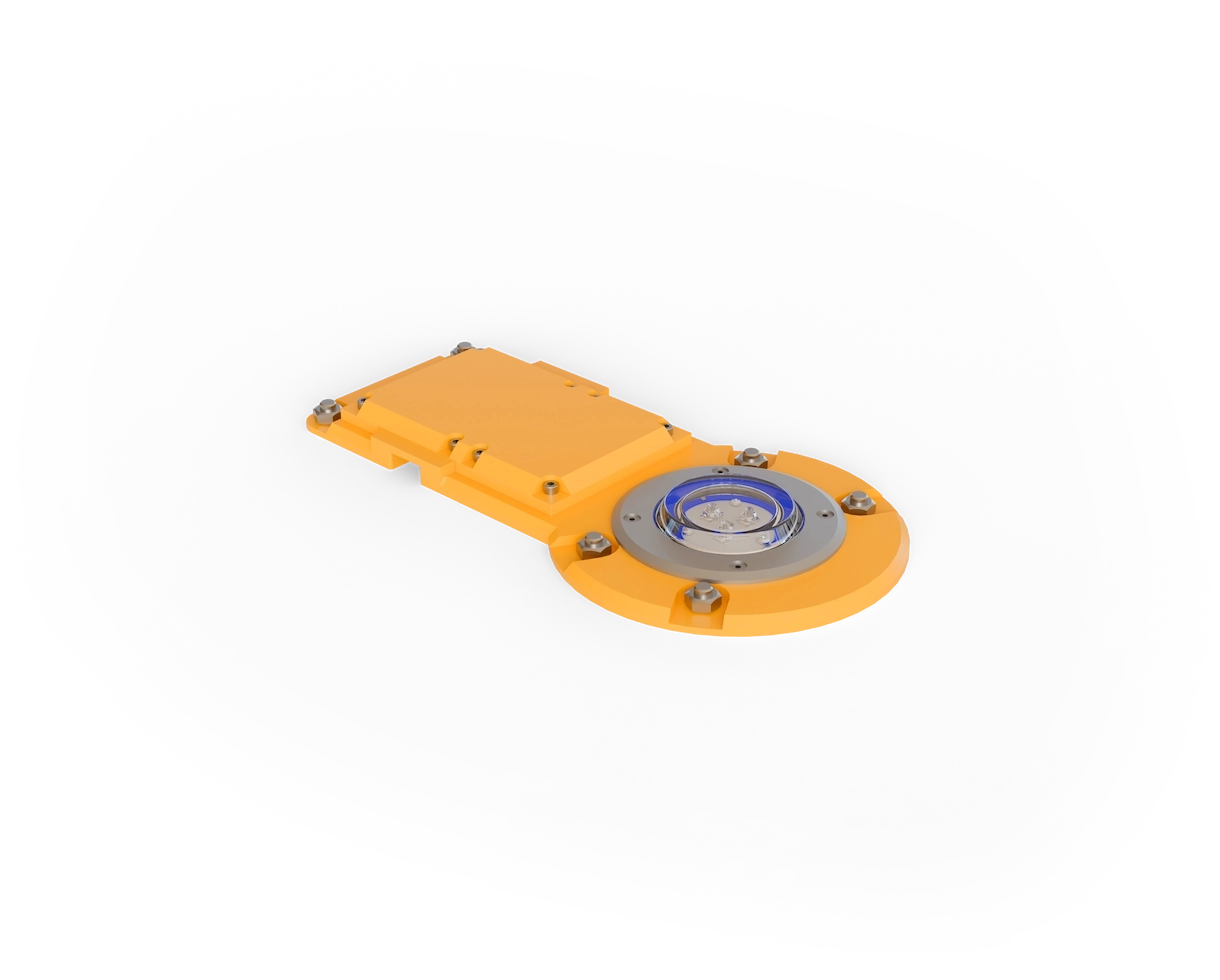

The Flat TAXIWAY type FD is a blue light unit designed to provide clear guidance for helicopter ground movements between the landing area and hangars. This model features integrated junction boxes, making it specifically optimized for surface-level installation on existing solid platforms where drilling is not feasible. All cabling is securely protected within durable aluminum profiles on top of the surface, ensuring a fast and cost-effective setup. Engineered to meet the required standards, its low-profile housing ensures a safe path for helicopter tires during all taxiing maneuvers.

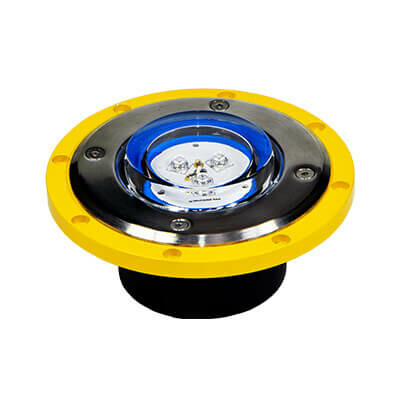

For installations on elevated heliports where electrical connections can be managed beneath the landing surface, you can also explore the standard Flat TAXIWAY heliport light version.

Certified According to Standards:

  • International Civil Aviation Organization (ICAO), Aerodromes, Annex 14, Vol. I
  • International Civil Aviation Organization (ICAO), Heliports, Annex 14, Volume II
  • IEC TS 61827:
    Electrical installations for lighting and beaconing of aerodromes.
    Characteristics of inset and elevated luminaires used on aerodromes
    and heliports
Category ,
Product Code AL-072-03-BL-F
Add to my list

Description

  • Housing – Powder coated aluminium RAL 1004 (aviation yellow)
  • Disperser – hardened glass
  • Disperser flange – nickel plated ring
  • Cable gland – nickel plated brass
  • Fasteners – stainless steel

Light fixtures are provided with anti condensation valve.
Light fixtures are UV protected.

Electrical Characteristics

  • Power consumption: 3,15 W
  • Power supply:
    • 48 VDC from controller – dimmable: 100%, 30%, 10%
    • 90-230 V, 50/60 Hz – non dimmable
    • 1.4 A CC – dimmable: 100%, 30%, 10% (internal bypass + SPD)

Flat Taxiway – FD Accessories

Download Flat Taxiway – FD datasheet

Datasheet PDF 2 MB Download PDF
