Inset Alignment heliport light

About Inset Alignment Lights

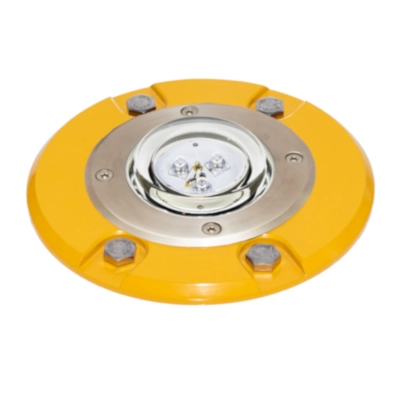

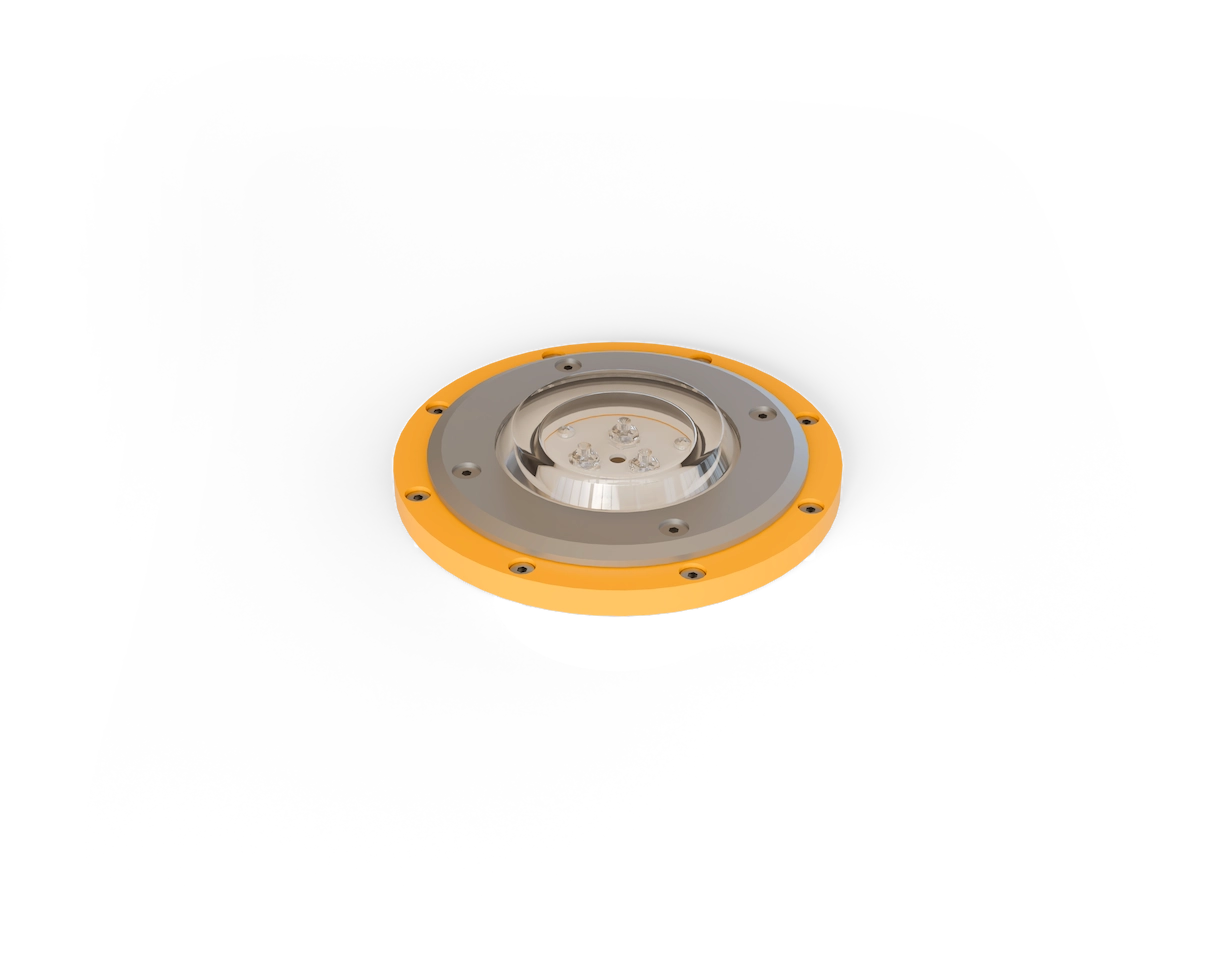

The Inset Alignment Heliport Light is a recessed LED fixture designed to provide precise directional guidance for helicopter approach and departure paths. It uses high-power LED technology with an estimated lifetime of up to 100,000 hours, ensuring long-term reliability with minimal maintenance.

The fitting is lightweight, low-energy, and environmentally friendly, making it suitable for modern sustainable aviation infrastructure. Its extensive use of aluminium alloys reduces overall weight, simplifies handling in the field, and improves installation efficiency. Built for durability and all-weather performance, it delivers consistent visual guidance while maintaining compliance with aviation safety requirements.

Certified According to Standards:

  • ICAO: International Civil Aviation Organization, Aerodromes, Annex 14, Vol. 1
  • ICAO: Annex 14, Volume II – Heliports
  • IEC TS 61827:
    Electrical installations for lighting and beaconing of aerodromes.
    Characteristics of inset and elevated luminaires used on aerodromes
    and heliports
Category ,
Product Code AL-089-03-WH – WH
Add to my list

Description

  • Housing – Powder coated aluminium RAL 1004 (aviation yellow)
  • Disperser – hardened glass
  • Disperser flange – nickel plated ring
  • Cable gland – nickel plated brass
  • Fasteners – stainless steel
    Light fixtures are provided with anti condensation valve.

Electrical Characteristics

  • Power consumption: 6.3 W
  • Power supply:
    • 48 VDC from controller – dimmable: 100%, 30%, 10%
    • 90-230 V, 50/60 Hz – non dimmable
    • 1.4 A CC – dimmable: 100%, 30%, 10% (internal bypass + SPD)

Inset Alignment heliport light Accessories

Download Inset Alignment heliport light datasheet

Datasheet PDF 358 KB Download PDF
