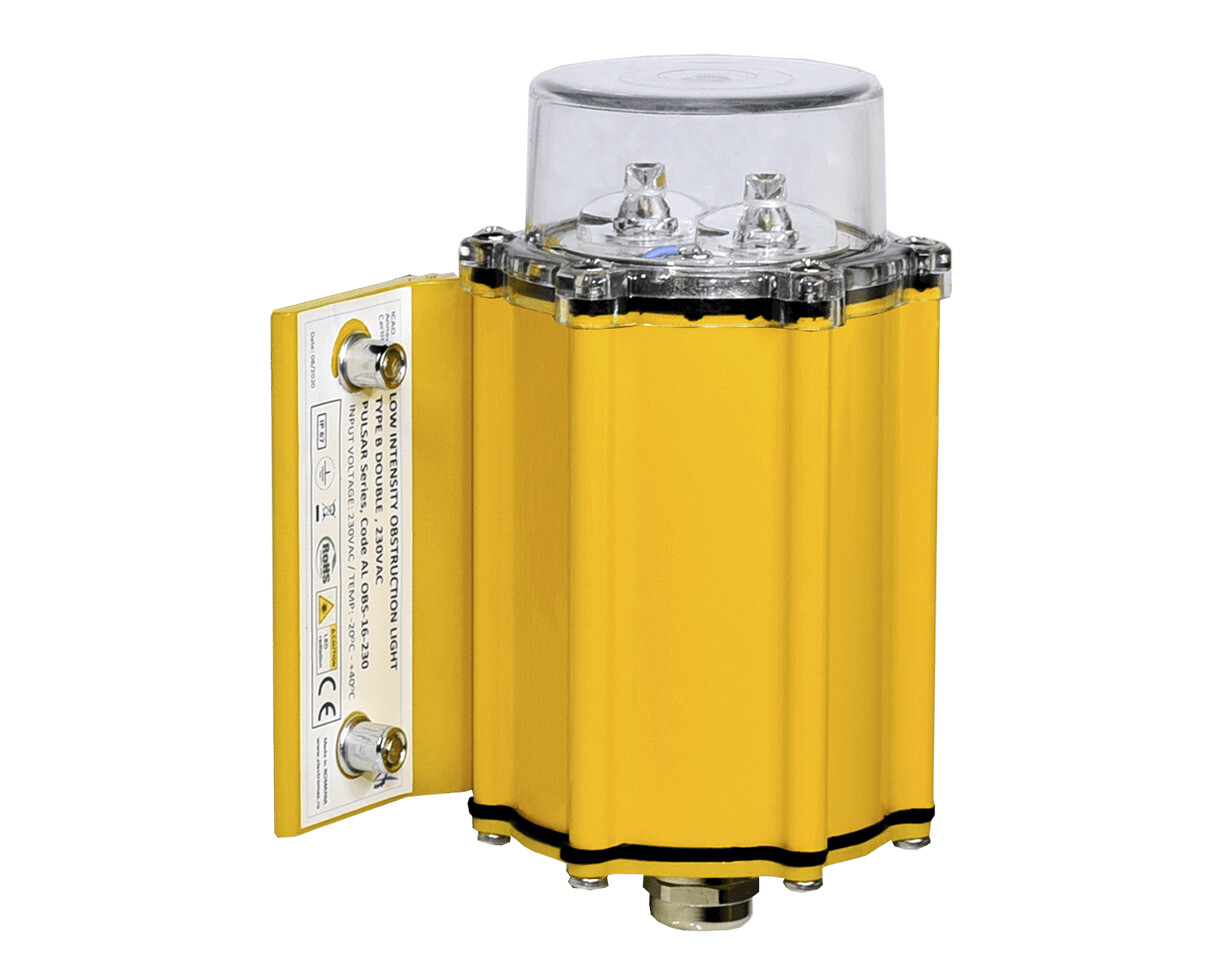

Type B Double

Light intensity: over 32cd

Application domain:

  • For marking of aerial obstacles, such as: towers, buildings, antennas

Light source:

  • High Power LED(s)
  • Special design optics (lenses)

Reference standards:

  • ICAO, Annex 14, paragraph 6, table 6.3
Category ,
Product Code AL-OBS-16-XXX
Add to my list

Description

  • Period of use: 100.000 hours
  • Low energy consumption
  • Easy installation
  • Low voltage power supply available
  • Stable light, not affected by voltage variations
  • Housing made of extruded aluminum, for proper thermal management
  • The light fixture consists of:
    • 1 pc. clear diffuser, poly-carbonate or glass (for high temperatures and resistance to chemical environments)
    • 1 pc. Aluminum encasement
    • Optical assembly
    • Fixing system
  • The interior houses an optical block made up an aluminum support and LED(s)
  • All external elements are powder-coated in Airport Yellow – RAL 1004

Electrical Characteristics

  • Electrical insulation class: I
  • Power supply (XXX): 230-110V AC, 12-24V or 48V DC
  • Power consumption 3 W per LED
  • If it is powered from Power Supply And Control Panel will have redundancy and alarming

Type B Double Accessories

Download Type B Double datasheet

Datasheet PDF 578 KB Download PDF
