Runway Threshold Identification Light

Runway Threshold Identification Light

Compliant According to Standards:

  • ICAO: Annex 14, Volume I – Aerodrome Design and Operations
Category ,
Product Code AL-080-24-WH
Add to my list

Description

Runway Threshold Identification Light is a system of two white directional flashing lights. It is part of the guidance system on an airport.

The system is used to identify the threshold, providing guidance during the approach for the pilots. This system is used on VFR airports or instrumental non-precision airports.

The position of the lights is one on the right and one on the left or the threshold lights.

The flashes are synchronized and have a frequency between 60 to 120 per minute.

Runway Threshold Identification Lights are visible from every long distance giving the pilot time to adjust the flight and to make a safe and acquired approach for landing during the night or in reduced visibility conditions.

Construction

  • Housing – powder-coated aluminum, RAL 1004 (aviation yellow)
  • Anti glare visor – powder-coated aluminum, RAL 9005 (gloss black)
  • Diffuser – clear poly-carbonate UV pretected
  • Cable gland – nickel-plated brass
  • Fastening system – powder-coated aluminum, RAL 1004 (aviation yellow)
  • Fasteners – stainless steel

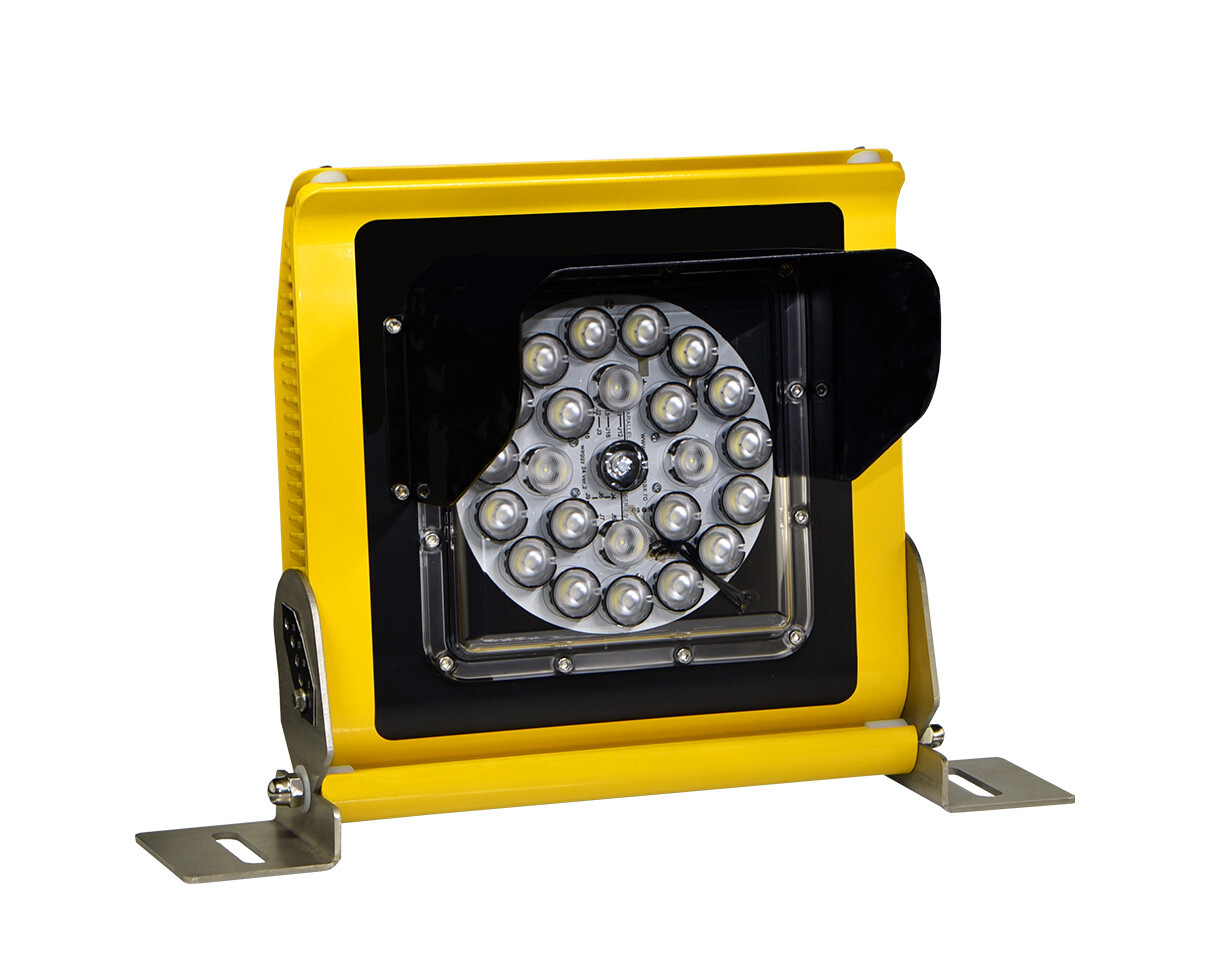

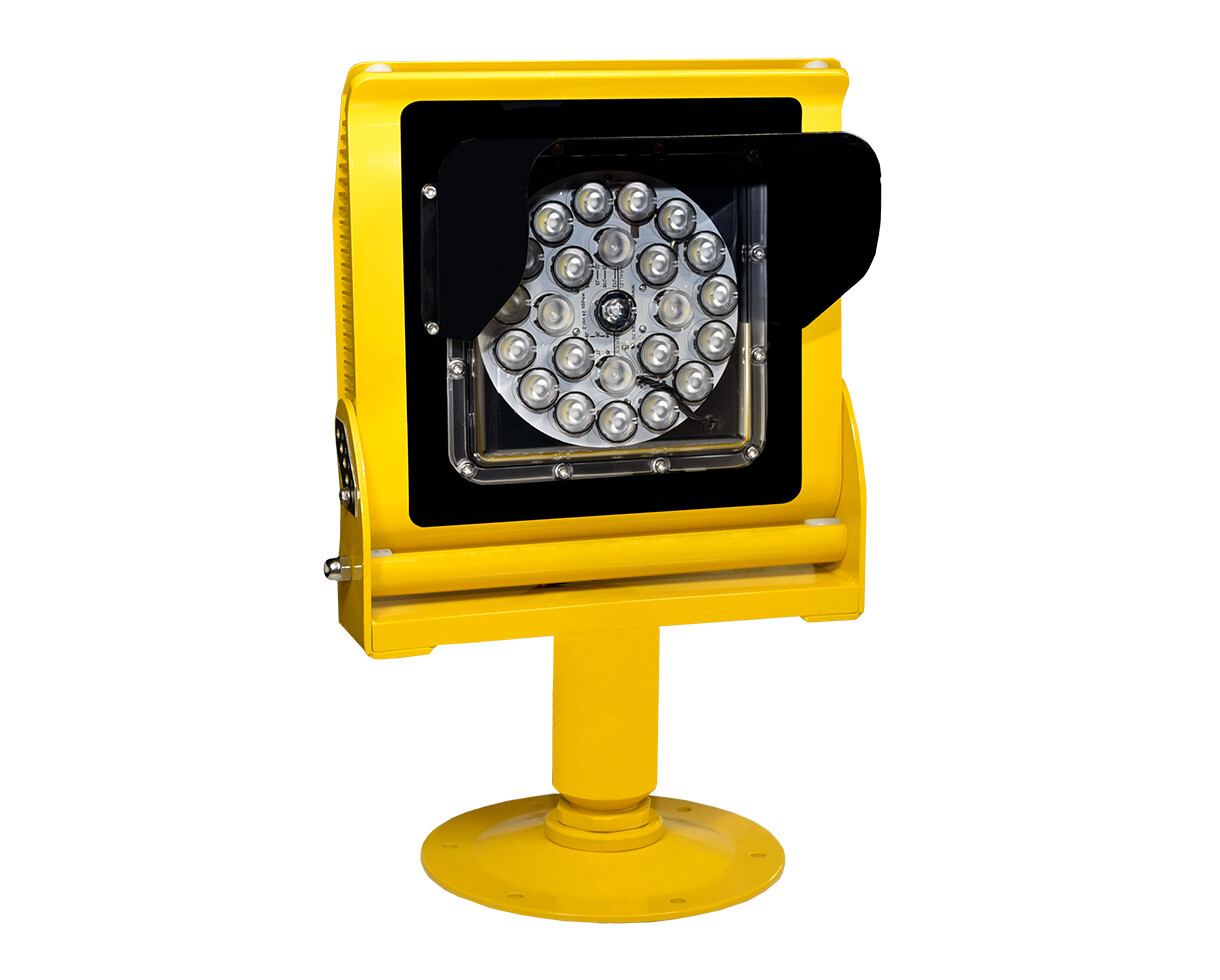

  • The mounting system can be on frangible low brackets or on baseplates with frangible coupling

Electrical Characteristics

  • Power consumption: 20W
  • Power supply: 110/230V AC from mains AC parallel lighting circuit
  • Optional supply: in a constant current circuit from V3 controller with 3 brightness steps (10, 30 and 100%)
  • Optional supply: from 6.6 A powered from CCR

Optical Characteristics

  • Runway Threshold Identification Light is made with high power OSRAM LEDs and special lenses to create the brightness intensity values complies with ICAO requirements Annex 14 Vol.1 Figure A2-10
  • The colorimetry compliant with ICAO Annex 14 – Aerodromes Vol.1, fig. A1-1-1b – Colors for aeronautical ground lights (solid-state lighting)

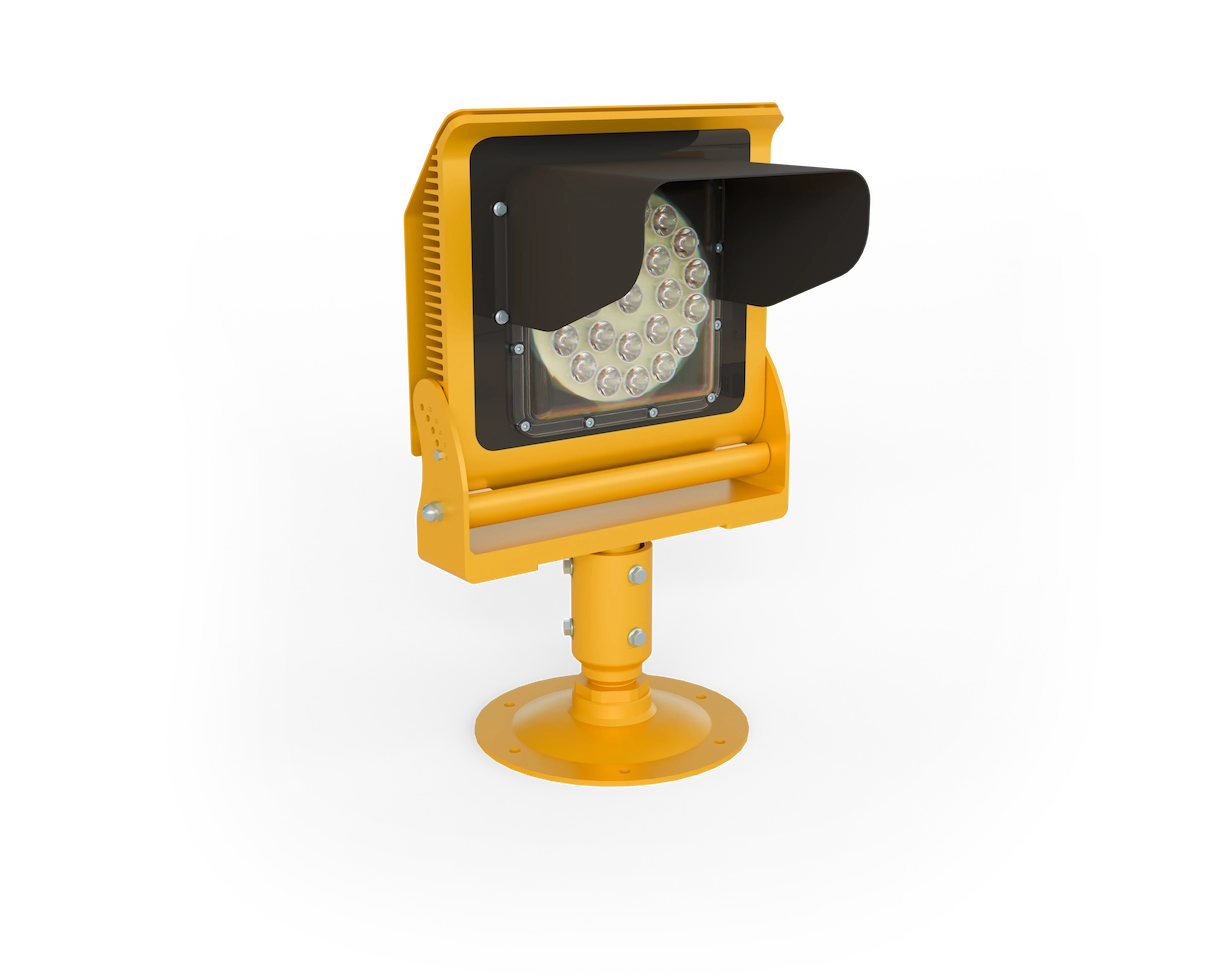

    Runway threshold identification light

     Runway threshold identification light – light distribution

Environment

The proper choice of materials makes the lights suitable for any type of environment dry or wet but also cold or hot

  • Temperature range: – 40 to +55 ° C
  • Degree of protection: IP 65
  • Humidity 0 – 100%
  • Wind speed up to 480 km/h

Accessories

Downloads

Datasheet PDF 302 KB Download PDF
