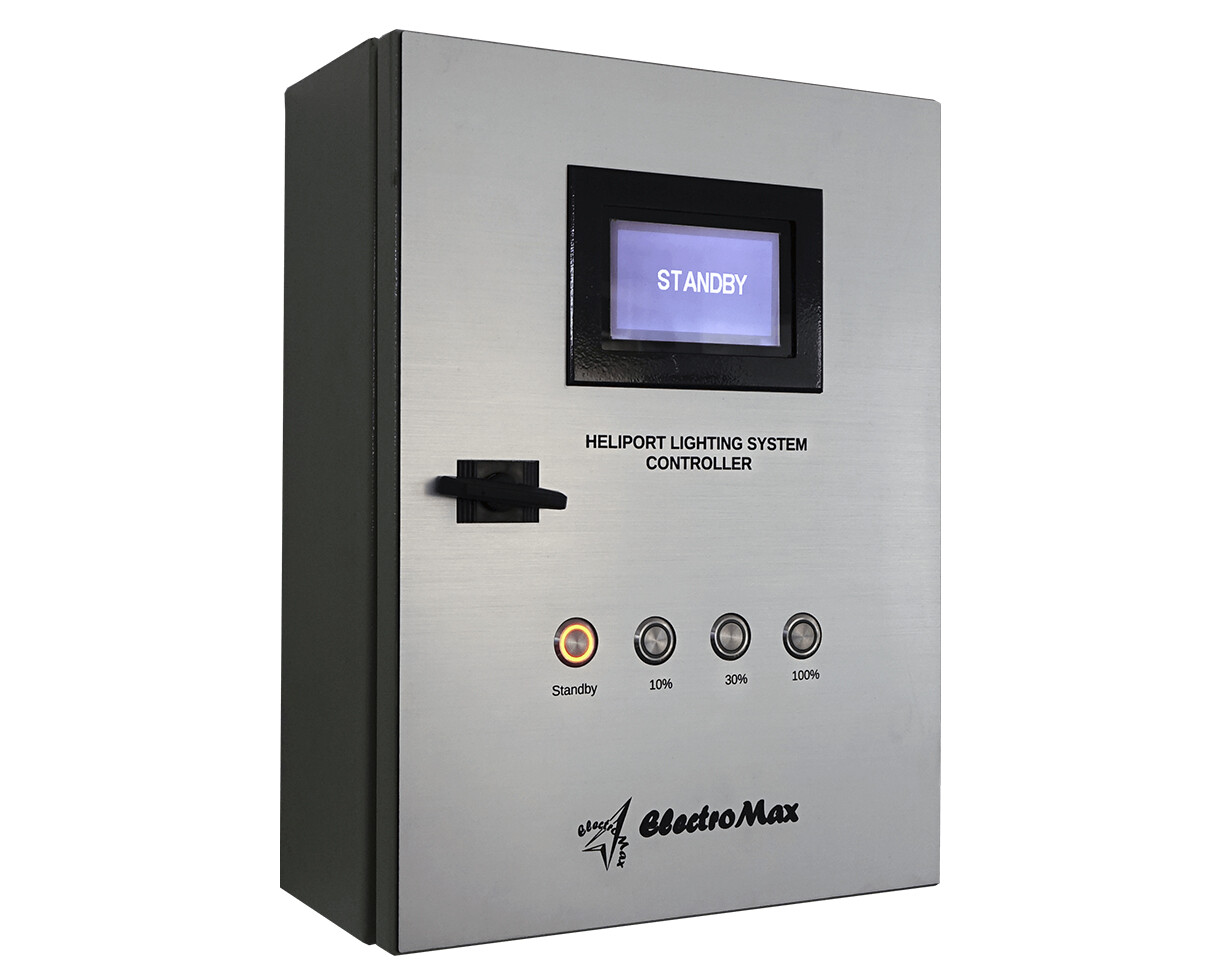

Heliport Controller V2

The Heliport Controller is designed as a compact and simple device used to control and provide the power requirements of an entire heliport lighting system.

The system is fully protected from input transients, output, overload, over-voltage, and over-temperature conditions. Designed and manufactured in Romania. Light Intensity control can be set at the following brightness levels: 10%, 30%, and 100%.

When the lighting system includes a Heliport Beacon, the above intensities will automatically be changed for the beacon. So when the system will run at 10% power, the beacon will run at 3%, at 30% power, the beacon will run at 10% and 100% power is for both the beacon and the other lights (ref. ICAO 5.3.2.5)

Category ,
Product Code AL-077-AX
Add to my list

Description

  • Input power range: 110-240V AC
  • Output voltage: 48V DC
  • Output power: 600 or 1000 W (120W reserved for heliport beacon)
  • Compatible with: TLOF, FATO, AIMING, APPROACH, and BEACON
  • Light Intensity Control: the following brightness levels can be set:
    • 10%
    • 30%
    • 100%
    • LCD Display

Technical Specifications

The Hely controller is designed as a compact and simple device used to control and provide the power requirements of an entire heliport lighting system.

  • The casing is made of powder-coated metal
  • LCD Display
  • 3 step brightness control
  • Compatible with TLOF, FATO, AIMING, APPROACH and BEACON

Downloads

Datasheet PDF 260 KB Download PDF
