Hospital Kliniczny Dzieciątka Jezus

Performant elevated lighting system by Signalight
Hospital Kliniczny Dzieciatka Jezus is a hospital & health care company based in Warshaw, Poland that benefits from a performant elevated lighting system designed and manufactured by Signalight.

Challenge

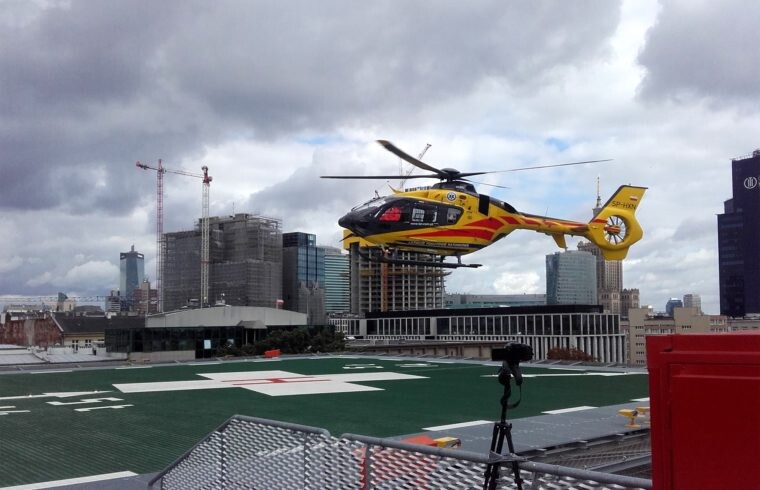

The hospital developed a heliport for quick and easy access to the patients. For efficient lighting of the heliport, Signalight manufactured and provided a performant elevated containing the following heliport lighting products:

  • Floodlight 20W – for a high luminous efficiency

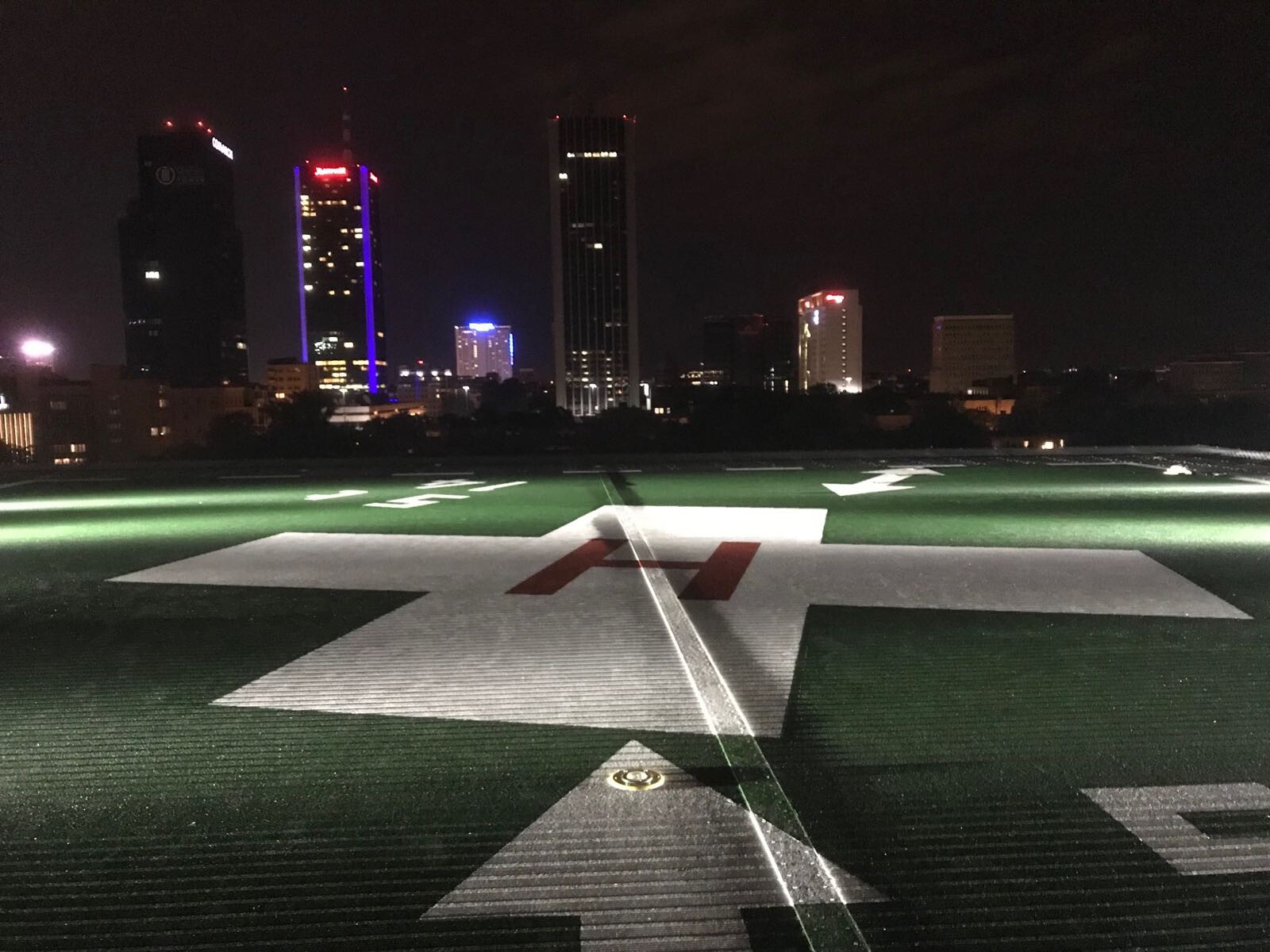

  • Flat TLOF lights – designed for mounting directly on the surface of the helipad, to indicate the TLOF area (Touchdown and Lift Off Area Perimeter)
  • Flat alignment – for available approach and/or departure path direction on the heliport.

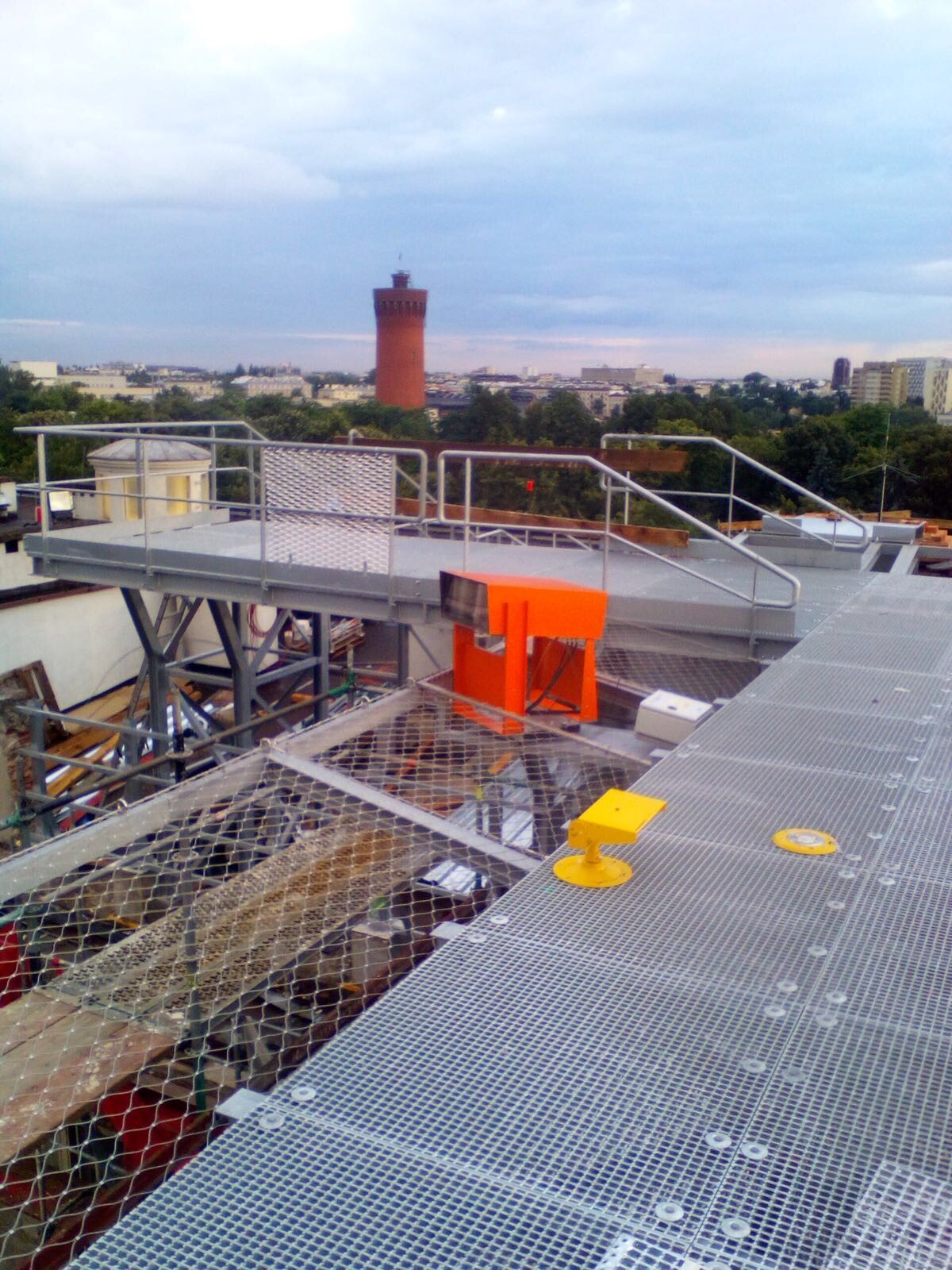

  • Floodlight 20W
    This lighting product with 20W power consumption is tested at a – 55 to +55 degree temperature and is having an IP 66.
    Also, the floodlight is having anti-glare visor – powder-coated aluminum, RAL 1004 (aviation yellow)
    All the Signalight products are designed to be functional in any kind of environmental conditions. The light fixtures are equipped with an anti-condensation valve and are UV protected
    Regarding the mounting conditions, the floodlight can be purchased with three types of mounting systems: surface mounted with base plate, shallow base, or shallow base with an adapter ring.

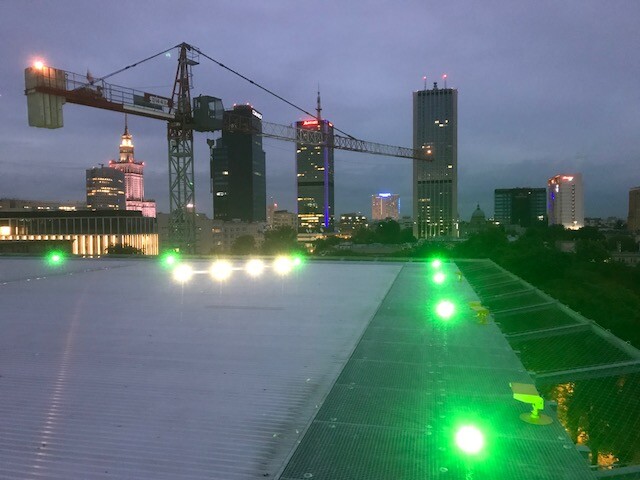

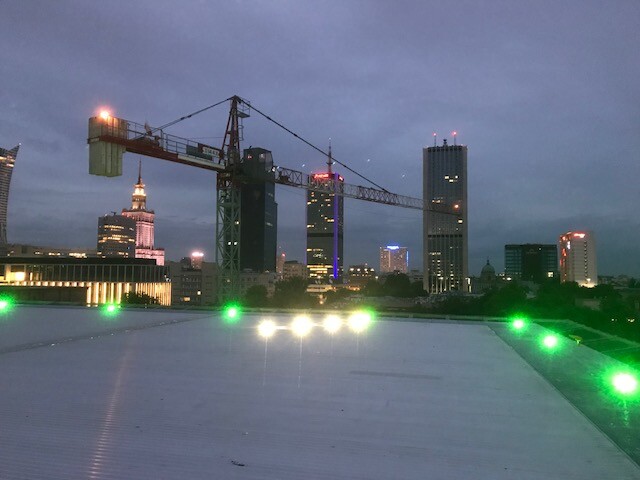

    Flat TLOF lights
    This type of lighting is also designed to be functional even at a – 55 to +55 degree temperature and is having an IP X8.

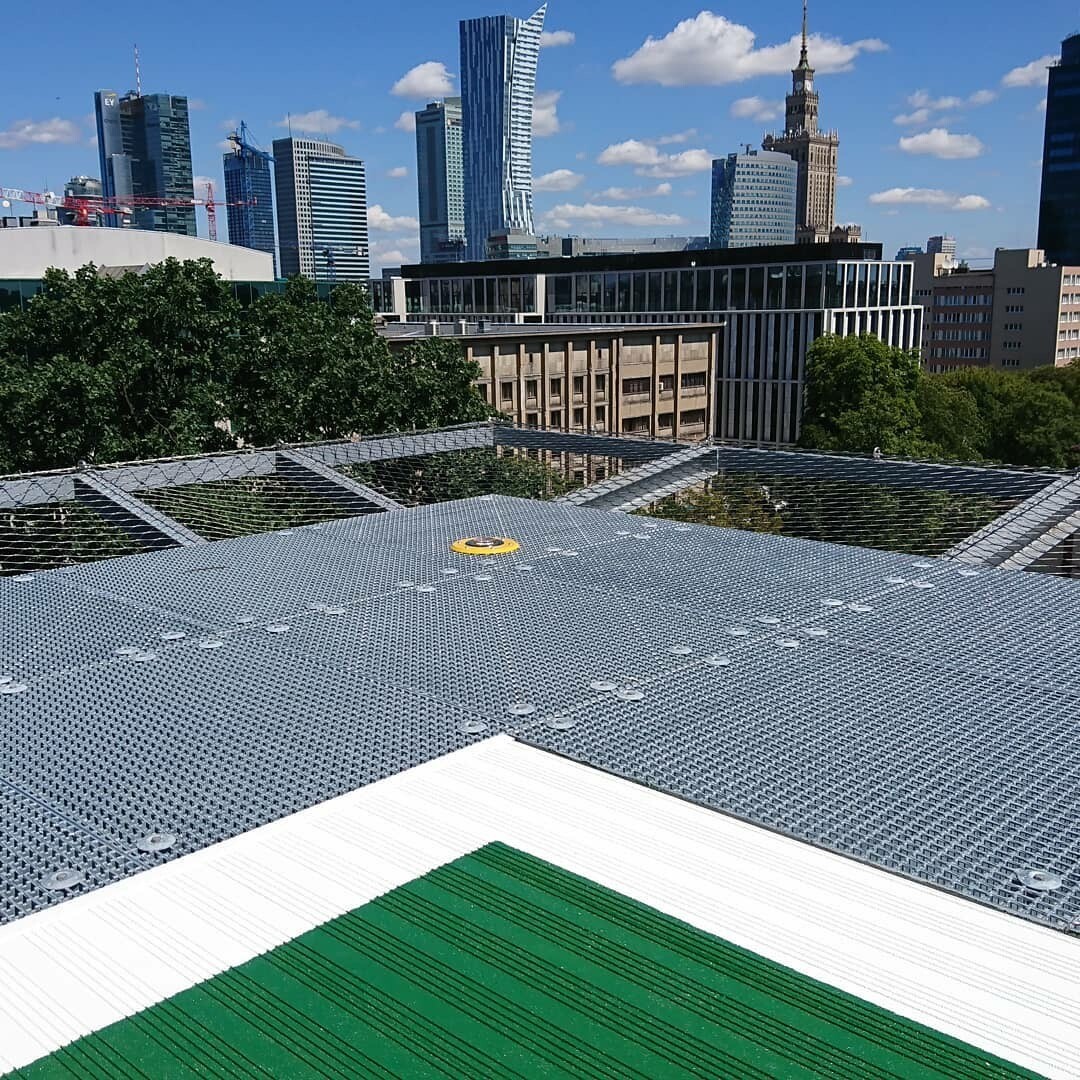

    The light fixtures can be mounted on any hard flat surface, such as concrete, asphalt, or metallic structures, and are UV protected and provided with an anti-condensation valve.

    Flat alignment
    Flat alignment is having 9W power consumption and it can benefit from a power supply: 48V DC from the controller – dimmable: 100%, 30%, 10% or 90-230V, 50/60Hz – non-dimmable
    Signalight provides this type of light fixture with sufficient length cable, which will be laid through a channel outside the heliport area, where it will be electrically connected using an IP65-rated junction box.

The Signalight performant elevated lighting system is certified/compliant according to international standards ICAO, FAA.

For your special project, just get in touch with us!

Szpital Kliniczny Dzieciątka Jezus

Project Information

Location Kliniczny Dzieciątka Jezus
Application
Date June, 2019
