Air Transit Route Markers

Compliant According to Standards:

  • ICAO heliport manual
Category ,
Product Code AL-091-00-YE/GR/YE
Add to my list

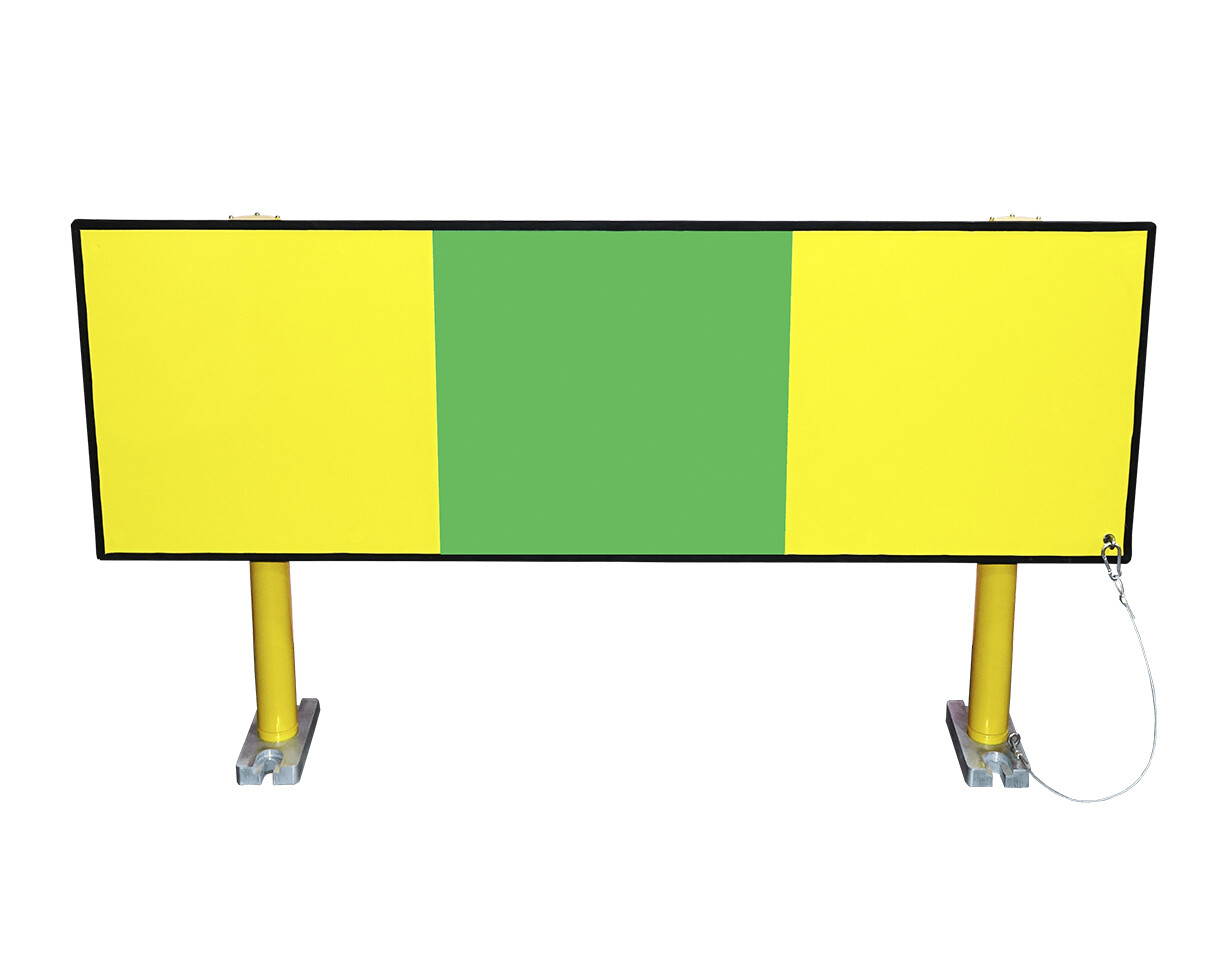

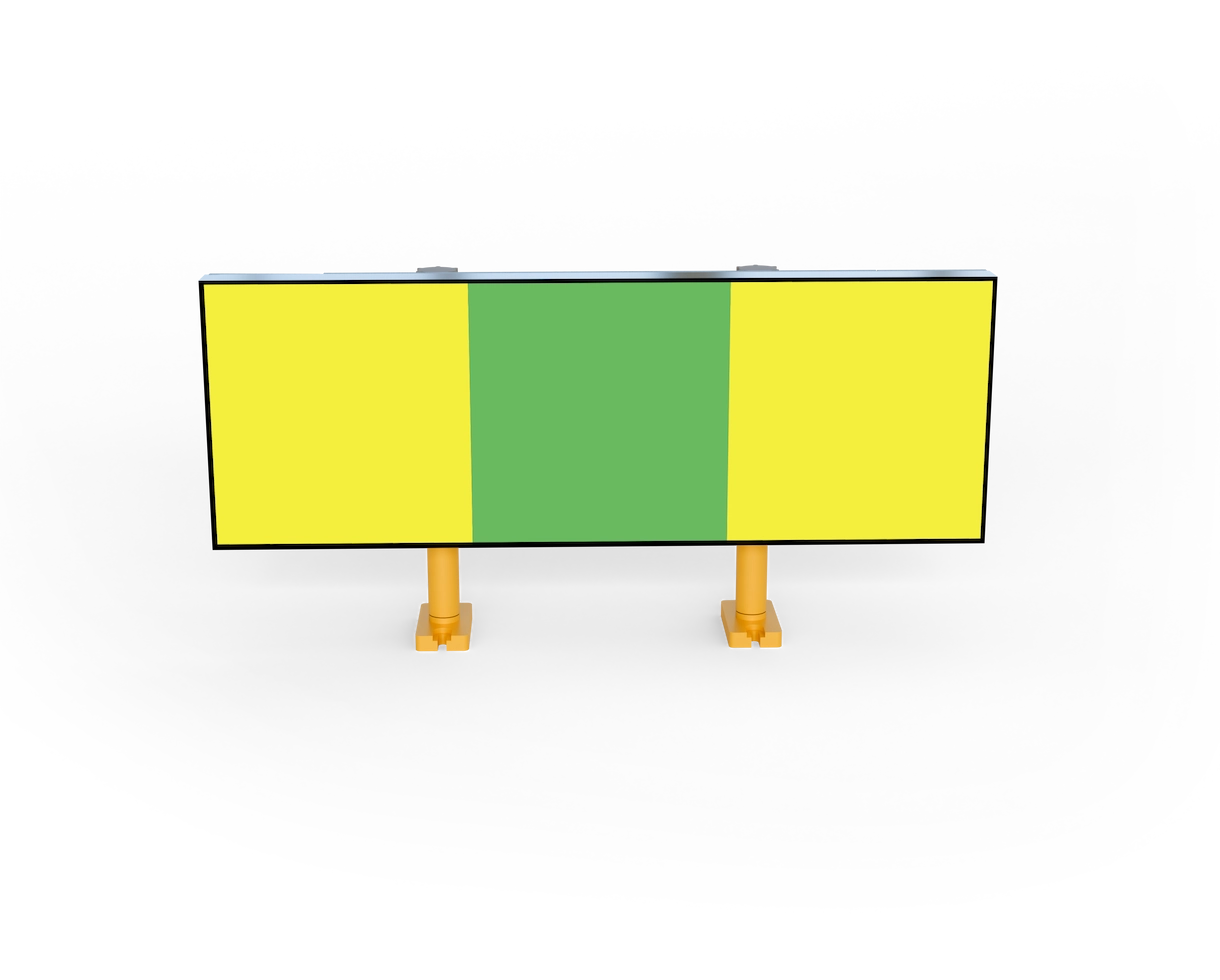

  • Air Transit Route Markers are made from aluminum with two frangible poles, baseplates, anchor rope.
  • The panel is nonilluminated and it is colored with 3M foils.
  • Where air transit routes are established their center lines should be marked with markers
  • The markers shall be frangible and located along the centerline of the air transit route
  • The markers shall be spaced at intervals of not more than 60 m on straight sections and 15 m on curves
  • The surface of the marker as viewed by a pilot shall be a rectangle with a height to width radio of approximately 1 to 3 and have a minimum area of 1.500 cm2
  • The marker shall show three vertical bands colored yellow, green and yellow respectively and shall not exceed 1 m above ground or snow level

Download Air Transit Route Markers datasheet

Datasheet PDF 90 KB Download PDF
